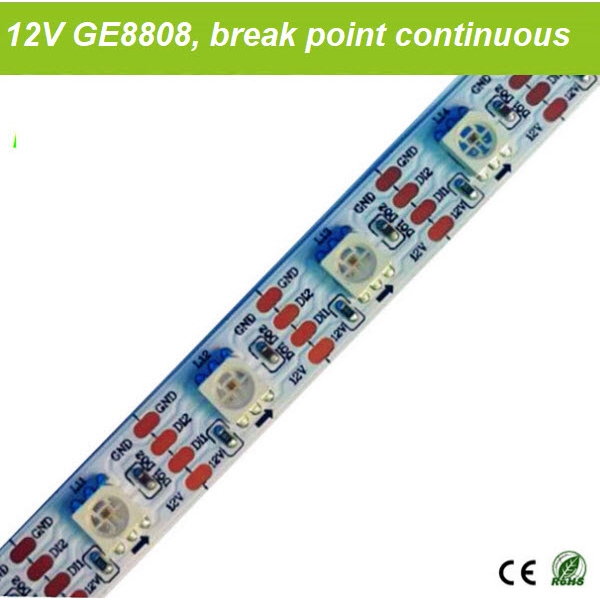

12V Digital led strip

GE8808 break point continuous strip

    1. Input Voltage DC12V, single signal (DI) control.
    2. Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault LED.
    3. GE8808 IC embedded in SMD5050 RGB LED. Each led is programmable.
    4. 30leds/m,60leds/m,144leds/m available.
    5. 33.3mm/1.31",16.6mm/0.65",6.9mm/0.27" intervals cutting point
    6. White PCB/Black PCB available, IP21/IP65/IP67/IP68 available.
    7. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
    8. 3M adhensive tape stick on the back of non-waterproof version.
    9. Controller System:SD controller , DMX controller , Artnet.

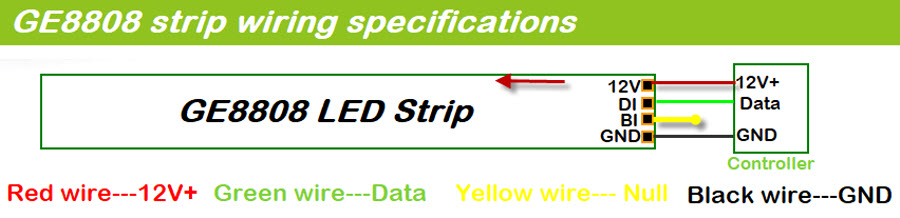

    10. Only DI wired to controller‘ data . BI is for the chip‘s breakpoint resume function when we resolder PCB

    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE30RGB8808A
    GE30RGB8808B
    GE30RGB8808C
    GE30RGB8808D
    5000*10*3.0
    5000*10*3.5    5000*12*4.0
    5000*12*4.0
     IP21
        IP65
     IP67
     IP68
    DC12V SMD5050RGB GE8808
    Built in
    30 30 R: 80lm
    G:160lm B:65lm
    Mix W:255lm
    120 8.0w
    GE60RGB8808A
    GE60RGB8808B
    GE60RGB8808C
    GE60RGB8808D
    5000*10*3.0
    5000*10*3.5    5000*12*4.0
    5000*12*4.0
     IP21
        IP65
     IP67
     IP68
    DC12V SMD5050RGB GE8808
    Built in
    60 60 R: 160lm
    G:320lm B:130lm
    Mix W:510lm
    120 18.0w
    GE144RGB8808A
    GE144RGB8808B
    GE144RGB8808C
    GE144RGB8808D
    5000*12*2.5
    5000*12*3.0    5000*14*3.5
    5000*14*4.0
     IP21
        IP65
     IP67
     IP68
    DC12V SMD5050RGB GE8808
    Built in
    144 144 R: 390lm
    G:790lm B:305lm
     Mix W:1210lm
    120 40.0w
