1. Input Voltage DC5V, Single signal (data) control.

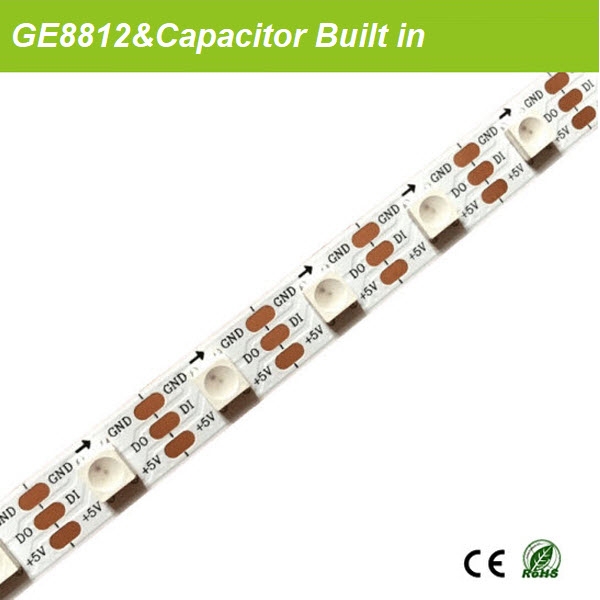

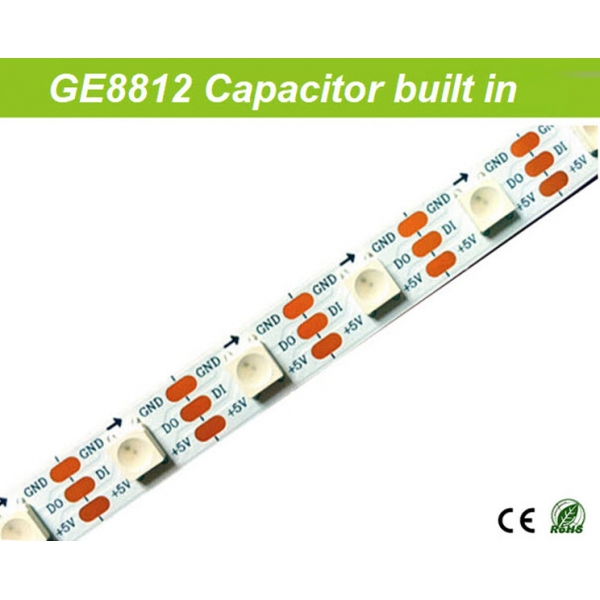

2. GE8812 IC and Capacitor embedded in SMD5050 RGB LED.
IC Protocol compatible with WS2812B/SK6812,each led is programmable.
IC Protocol compatible with WS2812B/SK6812,each led is programmable.
3. 60leds/m,144leds/m available.

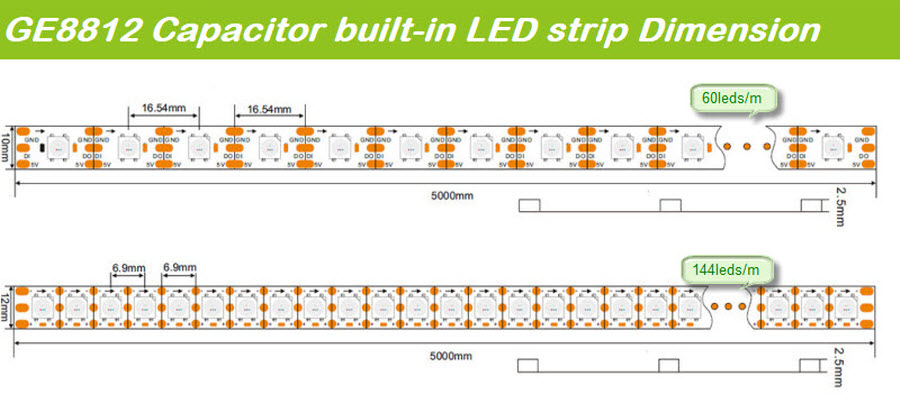

4. 16.6mm/0.65",6.9mm/0.27" intervals cutting point
5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE60RGB8812A GE60RGB8812B GE60RGB8812C GE60RGB8812D |
5000*10*2.5 5000*10*3.0 5000*12*3.5 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050RGB Capacitor Intergrating |
GE8812 Built-in |
60 | 60 | R:150lm G:270lm B:120lm Mix W:400lm |
120 | 13.2w |
| GE144RGB8812A GE144RGB8812B GE144RGB8812C GE144RGB8812D |
5000*12*2.5 5000*12*3.0 5000*14*3.5 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050RGB Capacitor Intergrating |
GE8812 Built-in |
144 | 144 | R:350lm G:635lm B:280lm Mix W:960lm |
120 | 32.4w |
