IC Built-in led

GE8805B Chip built in led


1.SMD internal integrated high quality external control line serial cascade constant current IC;
2. Control circuit and the RGB chip integrated in SMD 5050 components, to form a complete external control pixel, make the color mix uniformity and consistency;
3. Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
4. Gray level adjusting circuit (256 level gray scale adjustable);
5. Red drive special treatment, color balance;
6. Single-line data transmission for unlimited cascade
7. Plastic forward strengthening technology, the transmission distance between two pointsover 10M;
8 Data transmission frequency can reach 800 Kbps, when the refresh rate of 30 frames per sec,the number of cascades is not less than 1024 points.

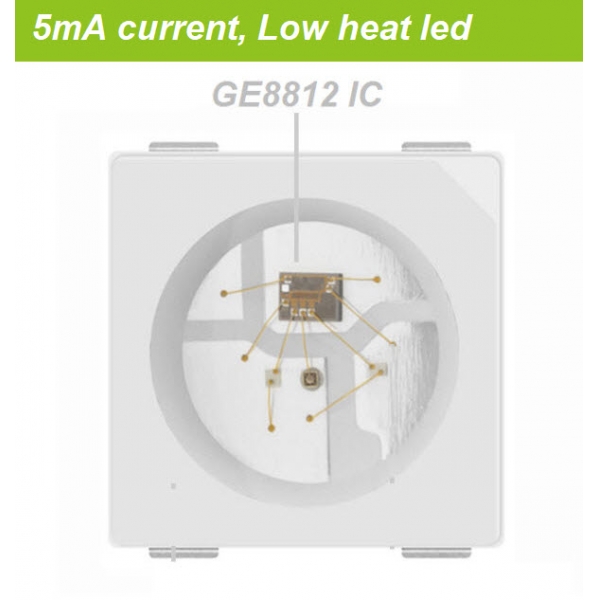

     GE8805B is 5mA version of GE8812B led and GE8812 IC integrated in SMD5050 LED,
     it is small current and lower heat led. Each led is indiviually programmable.
     its protocol is compatible with SK6812/WS2812B. we encapsulate it with epistar chip,
     High purity gold wire and high quality glue. its luminuous flux is higher than that of similar products.

    Product Model
    M/N Input Voltage IC type Led type Chip Color Wave length(nm) Luminous/led Angle Watt/led Package
    GE8805B DC5V GE8812
    Built-in
    SMD5050
    4Pins
    Epistar     9mil*9mil RGB R:620-623
      G:517.5-520
      B:467.5-470
      R: 1.2-1.5lm
    G:3.5-4.0lm
      B:0.8-1.0lm

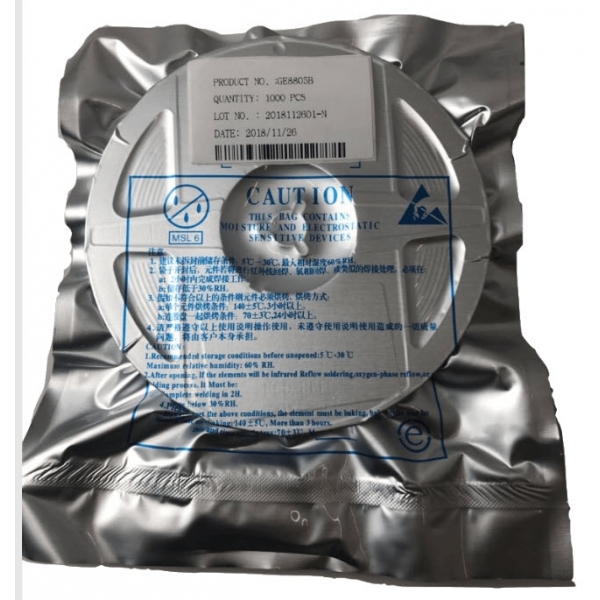

    120 0.1w 1K/Reel
    Remark: GE8812 IC Protocol is compatible with SK6812/WS2812B, GE8805B is 5mA version of GE8812B

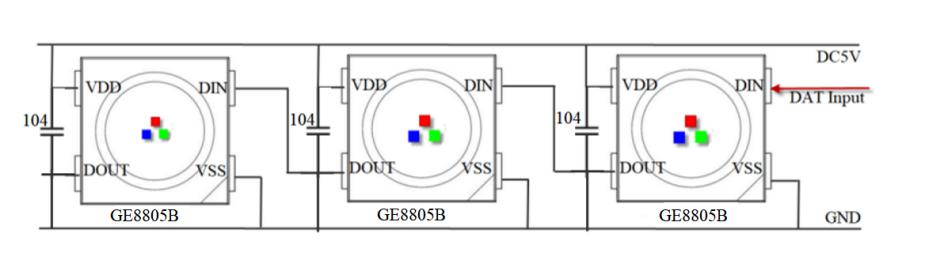

    Application circuit




    File Name : Format: Size: Download:
