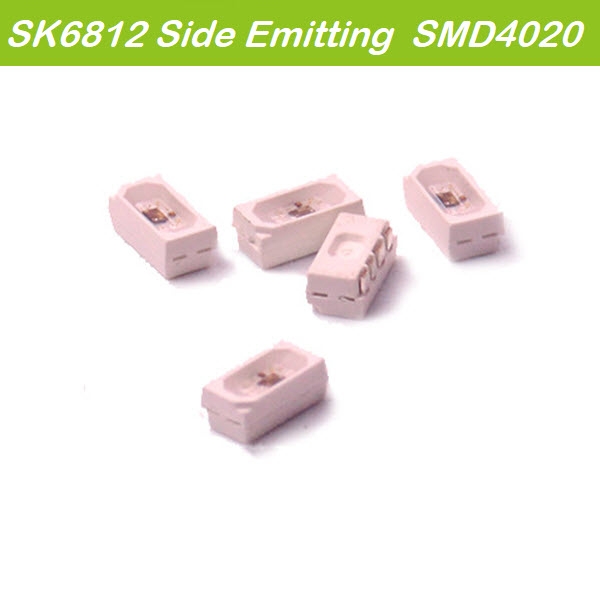

Mini Individually addressable led

SMD4020 SK6812 Side Emitting

SK6812S is a addressable Programmable component that Control circuit and RGB chip are integrated in a PLCC5050 led.
The data transfer protocol use single NZR communication mode. intelligent digital port data latch and signal reshaping
amplification drive circuit are intergrated in control unit which also have a precision internal oscillator and a 12V voltage
programmable constant current control part.

    1. Input Voltage: DC5V, SMD4020 , Side Emitting RGB color, SM16703IC Protocol
    2. RGB Dice and Micro control circuit are embedded in a PLCC4020 led.
    3. Built in signal reshaping circuilt, electric reset circuit and power lost rest circuit.
    4. 256 Grey level for each color, 16777216 Full color display.
    5. Once fresh rate reach 30fps, Then the cascade number is not less than 1024Pixels
    6. 800Kbps data transmission speed.
    7.0.1w type and 0.2w type availale

    Product Model
    M/N Input Voltage IC type Led type Color Wave length(nm) Luminous/led  Angle Watt/led Package
    SK6812SV5 DC5V    SM16703   Built-In SMD4020
    4Pins
    Side Emitting
    RGB R:620-630
    G:520-535
    B:460-475
     R: 0.2-0.5lm
    G:1.0-2.0lm
      B:0.2-0.5lm
    120 0.1w 2K/Reel
    SK6812SV12 DC5V   SM16703   Built-In SMD4020
    4Pins
    Side Emitting
    RGB R:620-630
    G:520-535
    B:460-475
     R: 1.0-1.5lm
    G:3.0-4.0lm
     B:0.5-1.0m
    120 0.2w 2K/Reel
