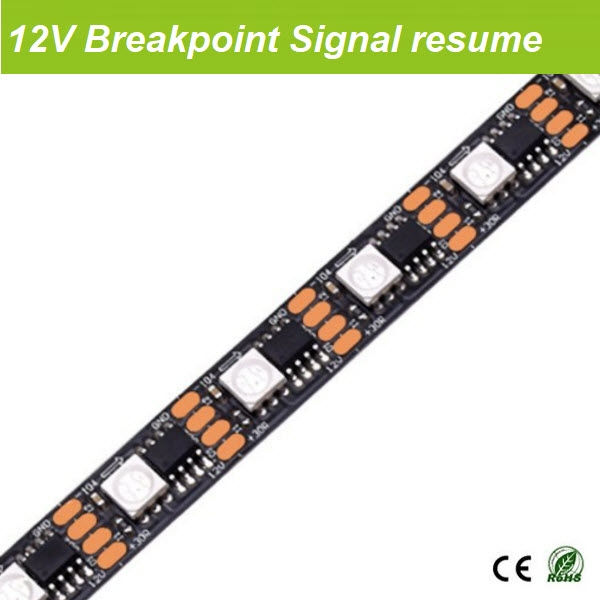

12V Digital led strip

12V individually-addressable digital led tapes

    1. The updated version of old WS2811,UCS1903 led strip,Breakpoint signal continuously transmission.
    2. Input Voltage DC12V, single signal (data) control.
    3. Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault IC.
    4. 48leds/m, 60leds/m available.
    5. White PCB/Black PCB available.
    6 IP Rating:
    IP21/IP65/IP67/IP68 available.
    7. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
    8. 3M adhensive tape stick on the back of non-waterproof version.
    9. Controller System:SD controller , DMX controller , Artnet.
    10. Only DI wired to controller‘ data . BI is for the chip‘s breakpoint resume function when we resolder PCB

    M/N L*W*H(mm) IP Rating Input voltage Pixel/m Compatible Protocol Cutting unit Colour Angle Watt/m
    GE48RGB8808A12 5000*10*2.5mm IP20 DC12V 48 WS2811,UCS1903 20.8mm RGB 120º 11.5w/m
    GE60RGB8808A12 5000*12*2.5mm IP20 DC12V 60 WS2811,UCS1903 16.6mm RGB 120º 14.0w/m
