12V Digital led strip

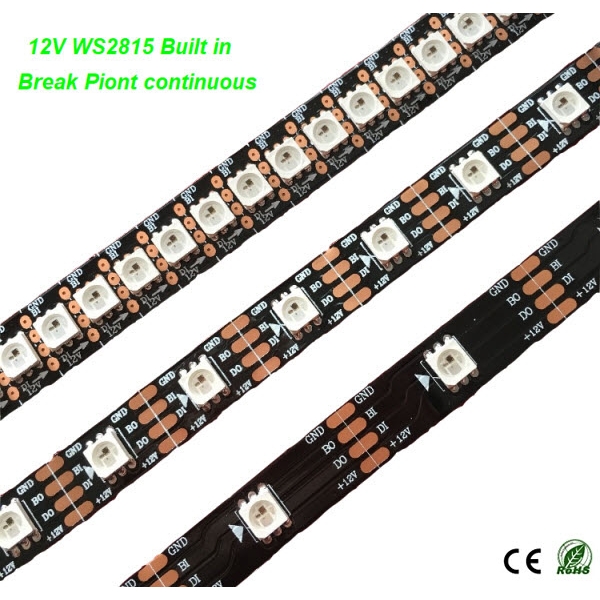

WS2815 break point continuous strip

    1. Input Voltage DC12V, single signal (DI) control.
    2. Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault LED。

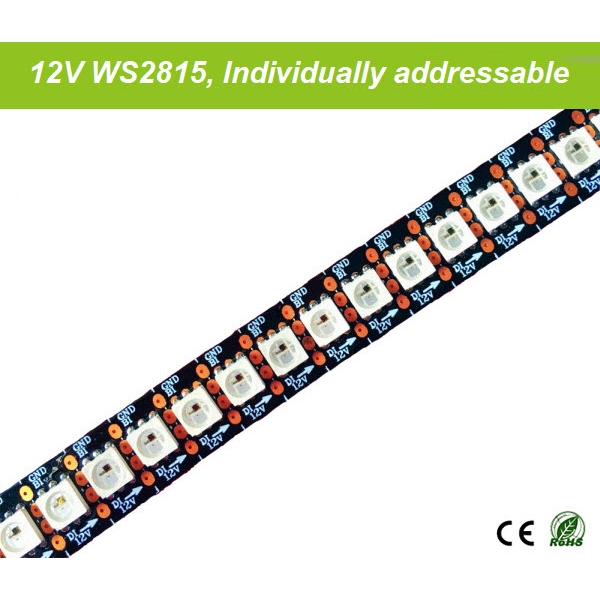

    3. WS2815 IC embedded in SMD5050 RGB LED. Each led is programmable.
    4. 30leds/m,60leds/m,144leds/m available.
    5. 33.3mm/1.31",16.6mm/0.65",6.9mm/0.27" intervals cutting point
    6. White PCB/Black PCB available, IP21/IP65/IP67/IP68 available.
    7. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
    8. 3M adhensive tape stick on the back of non-waterproof version.
    9. Controller System:SD controller , DMX controller , Artnet.

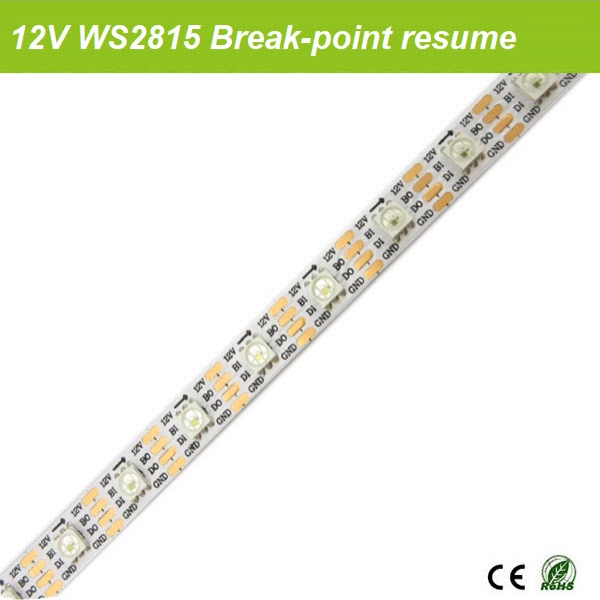

    10. Only DI wired to controller‘ data . BI is for the chip‘s breakpoint resume function when we resolder PCB

    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE30RGB2815A
    GE30RGB2815B
    GE30RGB2815C
    GE30RGB2815D
    5000*10*3.0
     5000*10*3.5    5000*12*4.0
    5000*12*4.0
     IP21
     IP65
     IP67
     IP68
    DC12V SMD5050RGB WS2815
    Built in
    30 30 R: 75lm
    G:150lm B:60lm
    Mix W:240lm
    120 5.0w
    GE60RGB2815A
    GE60RGB2815B
    GE60RGB2815C
    GE60RGB2815D
    5000*10*3.0
     5000*10*3.5    5000*12*4.0
    5000*12*4.0
     IP21
     IP65
     IP67
     IP68
    DC12V SMD5050RGB WS2815
    Built in
    60 60 R: 150lm
    G:300lm B:120lm
    Mix W:480lm
    120 9.6w
    GE144RGB2815A
    GE144RGB2815B
    GE144RGB2815C
    GE144RGB2815D
    5000*12*2.5
     5000*12*3.0    5000*14*3.5
    5000*14*4.0
     IP21
     IP65
     IP67
     IP68
    DC12V SMD5050RGB WS2815
    Built in
    144 144 R: 360lm
    G:720lm B:288lm
    Mix W:1150lm
    120 22.0w
