12V Digital led strip

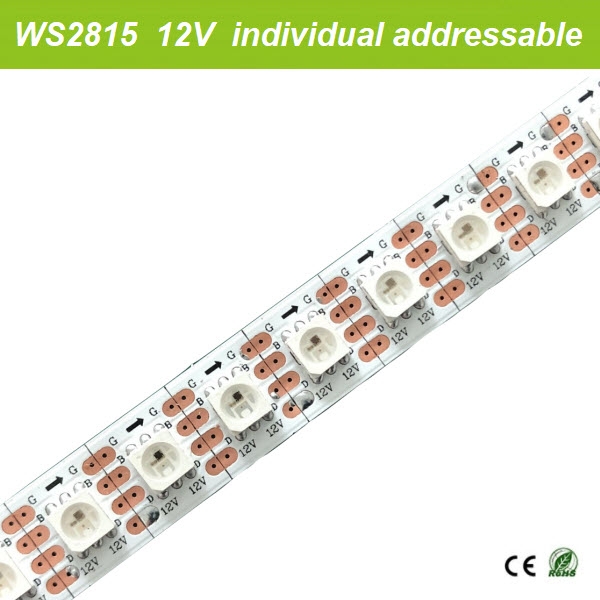

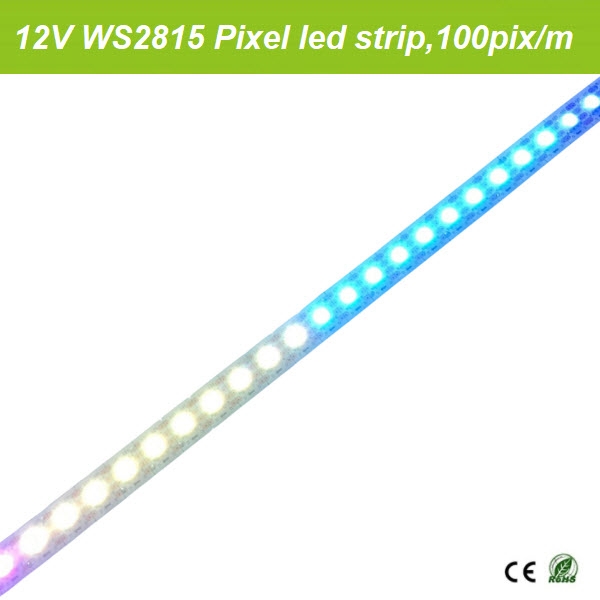

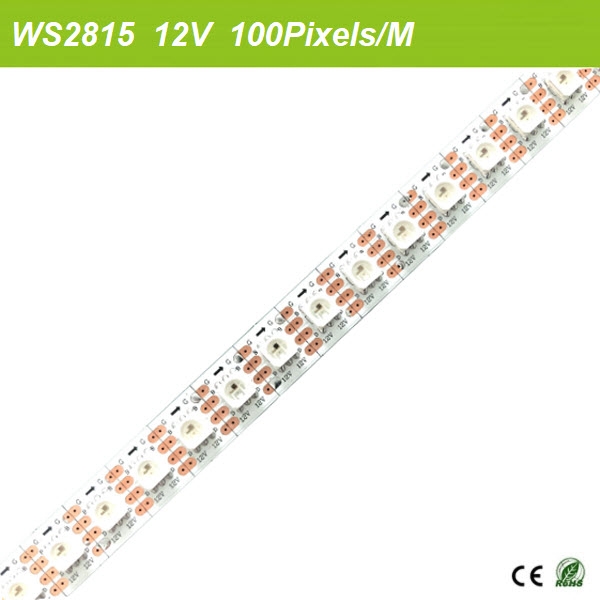

WS2815 led strip,12V-100pixel/m


    Features
    1. Input Voltage DC12V, single signal (DI) control.
    2. Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault LED。
    3. WS2815 IC embedded in SMD5050 RGB LED. Each led is programmable.
    4. 100LEDS/M,Each led addressable
    5. 10mm/0.393" intervals cutting point
    6. White PCB/Black PCB available, IP21/IP65/IP67/IP68 available.
    7. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
    8. 3M adhensive tape stick on the back of non-waterproof version.
    9. Controller System:SD controller , DMX controller , Artnet.
    10. Only DI wired to controller‘ data . BI is for the chip‘s breakpoint resume function when we resolder PCB

    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE100RGB2815A
    GE100RGB2815B
    GE100RGB2815C
    GE100RGB2815D
    5000*12*2.5
     5000*12*3.0    5000*14*3.5
    5000*14*4.0
     IP21
        IP65
     IP67
     IP68
    DC12V SMD5050RGB WS2815
    Built in
    100 100 R: 240lm
        G:480lm           B:190lm
    Mix W:700lm
    120 16w
