Features
1. The upgrated version of old ws2811,ucs1903 led strip,adding breakpoint signal resume function.
1. The upgrated version of old ws2811,ucs1903 led strip,adding breakpoint signal resume function.
2. Input Voltage DC24V, single signal (DI) control. Break Point resume function.
2. Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault IC.
3. IC Protocol compatible with WS2811,UCS1903,GS8208 ect popular IC Protocol.

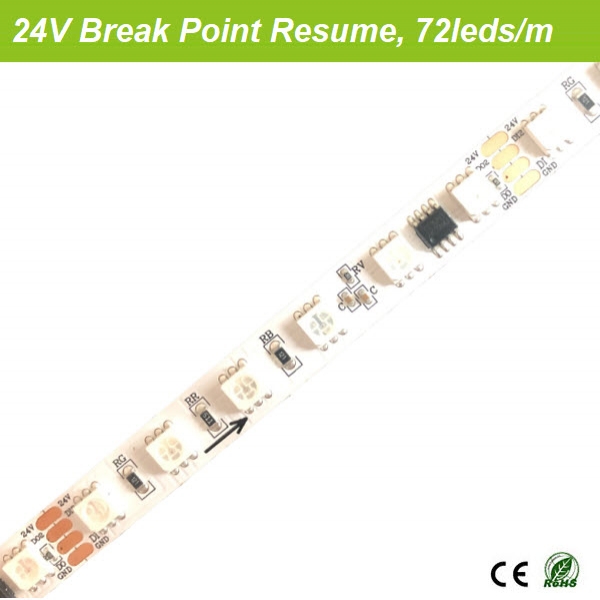

4. 60leds/m(10Pixel/m),72leds/m(12Pixel/m). 6led=1Pixel
5. White PCB/Black PCB available, IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.

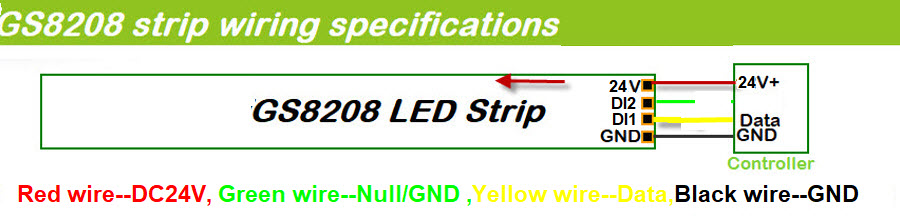

9. Only DI wired to controller‘ data . BI is for the chip‘s breakpoint resume function when we resolder PCB
10. Special environment with severe signal interference, we advice wire first BI to controller‘s GND.
if not, we can let BI as empty.
10. Special environment with severe signal interference, we advice wire first BI to controller‘s GND.
if not, we can let BI as empty.
| M/N | L*W*H(mm) | IP Rating | Input voltage | Compatible Protocol | Cutting Unit | Leds/m | Pixel/m | Color | Lm/m | Watt/m |
| GE60RGB8808A24 | 5000*10*2.5mm | IP20 | DC24V | WS2811,UCS1903 | 100mm | 60 | 10 | RGB | R:180 | 14.4 |
| GE60RGB8808B24 | 5000*10*3.0mm | IP65 | DC24V | WS2811,UCS1903 | 100mm | 60 | 10 | RGB | G:360 | 14.4 |
| GE60RGB8808C24 | 5000*12*4.0mm | IP67 | DC24V | WS2811,UCS1903 | 100mm | 60 | 10 | RGB | B:120 | 14.4 |
| GE60RGB8808D24 | 5000*12.5*4.5mm | IP68 | DC24V | WS2811,UCS1903 | 100mm | 60 | 10 | RGB | 14.4 | |
| GE72RGB8808A24 | 5000*10*2.5mm | IP20 | DC24V | WS2811,UCS1903 | 83.3mm | 72 | 12 | RGB | R:216 | 16.9 |
| GE72RGB8808B24 | 5000*10*3.0mm | IP65 | DC24V | WS2811,UCS1903 | 83.3mm | 72 | 12 | RGB | G:432 | 16.9 |
| GE72RGB8808C24 | 5000*12*4.0mm | IP67 | DC24V | WS2811,UCS1903 | 83.3mm | 72 | 12 | RGB | B:155 | 16.9 |
| GE72RGB8808D24 | 5000*12.5*4.5mm | IP68 | DC24V | WS2811,UCS1903 | 83.3mm | 72 | 12 | RGB | 16.9 |
