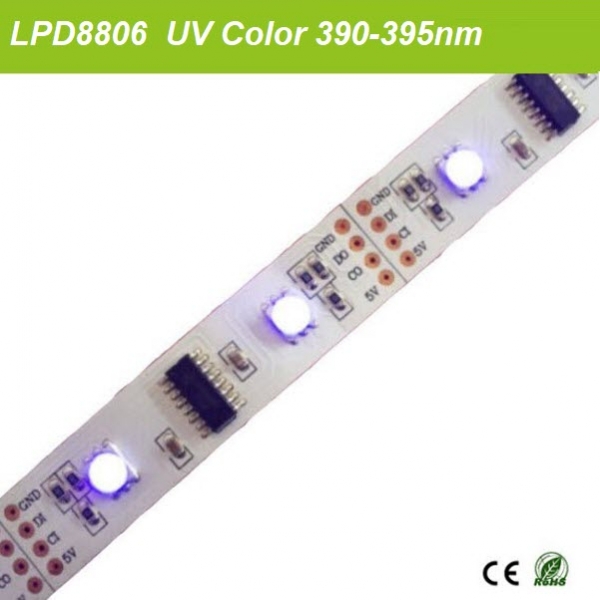

1. Input Voltage DC5V, Dual signal (data,clk) control.
2. External LPD8806 IC control, UV Color.
3. 32leds/m,52leds/m,60leds/m available.
4. 31.25mm/1.23",19.23mm/0.76",16.67mm/0.66" intervals cutting point
5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE32UV8806A GE32UV8806B GE32UV8806C GE32UV8806D |
5000*14*3.0 5000*14*3.5 5000*16*4.0 5000*16*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050 UV 390-395nm |
LPD8806 External |
32 | 32 | 16lm | 120 | 9.6w |
| GE52UV8806A GE52UV8806B GE52UV8806C GE52UV8806D |
5000*14*3.0 5000*14*3.5 5000*16*4.0 5000*16*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050 UV 390-395nm |
LPD8806 External |
52 | 52 | 26lm | 120 | 15.6w |
| GE60UV8806A GE60UV8806B GE60UV8806C GE60UV8806D |
5000*14*3.0 5000*14*3.5 5000*16*4.0 5000*16*4.0 |
IP21 IP65 IP67 IP68 |
DC5V | SMD5050 UV 390-395nm |
LPD8806 External |
52 | 52 | 30lm | 120 | 18w |
