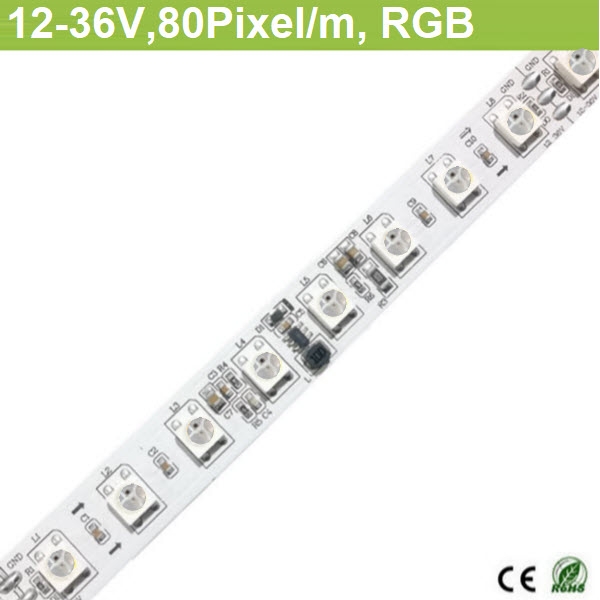

1. The circuit adopts a reliable power type step-down IC
2. MCU chip built in SMD5050 LED.
3. The working voltage range from 12V DC to 36V DC
4. SK6812 Protocol, 80Pixel/m, Each led addressable.
5.100mm/3.937"intervals cutting point.
6. Max 20.0W/M, RGB Color.
7. White PCB/Black PCB available,12mm width 3oz PCB.
8. 3M adhensive tape stick on the back of non-waterproof version.
9. Controller System：SD controller , DMX controller , Artnet.
10. Single end power supply drive length: 10M/Reel@12-24V;15M/Reel@24-36V.

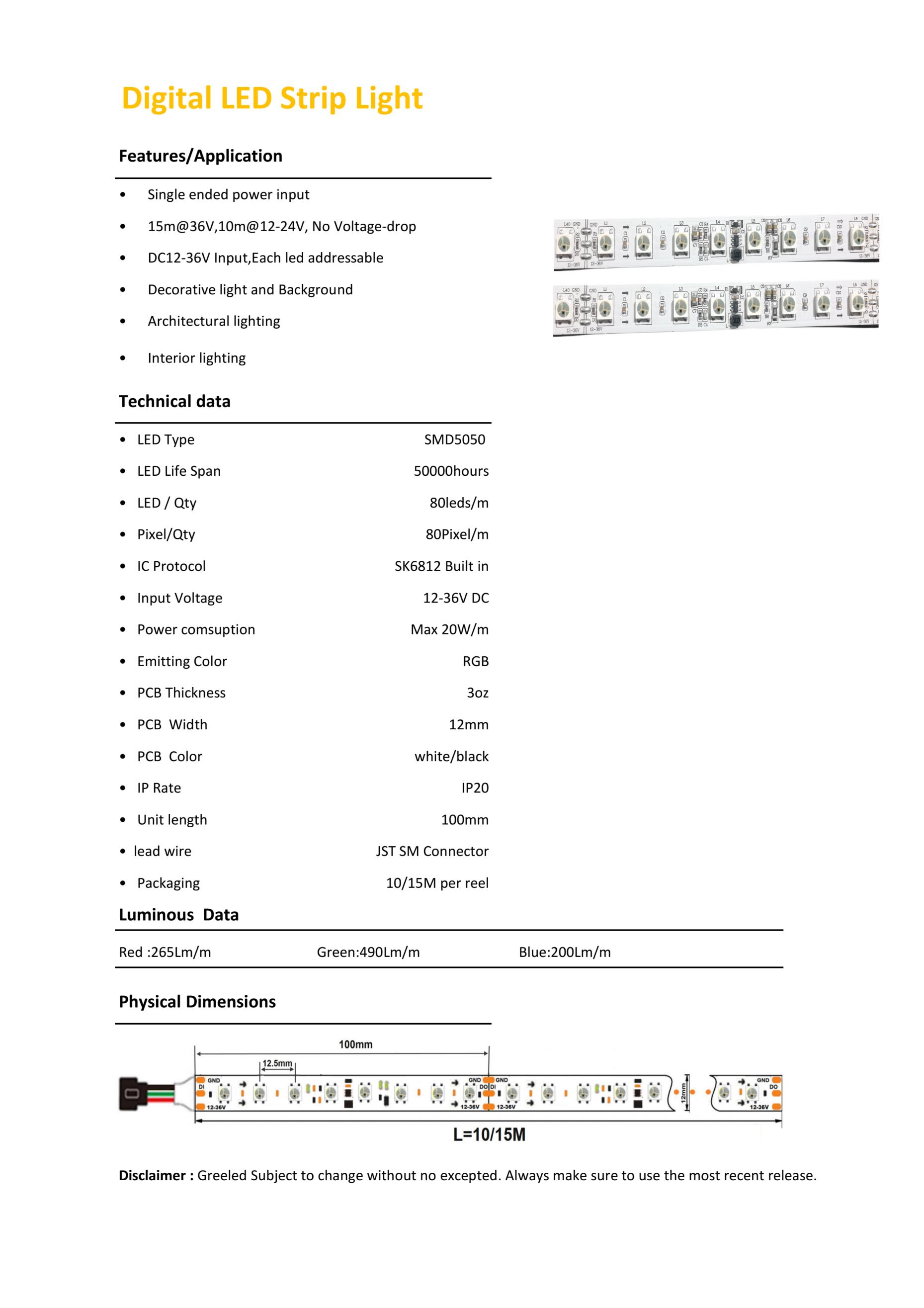

| M/N | PCB Width | Length | Voltage | IP Rating | Leds/m | Pixel/m | Emitting color | Power/m | IC protocol |
| GE80RGB6812A36 | 12mm | 10M/15M | Range from 12 to 36V | IP20 | 80 | 80 | RGB | Max 20w | SK6812 |
