Description:
1. DC24V IP67 rating 120º beam angle silicone neon Flex。
2. Constant voltage and Constant current available.
3. Cross section W*H(mm):12*20mm(S1220),6*12mm(S0612),4*8mm(S0408) neon housing available

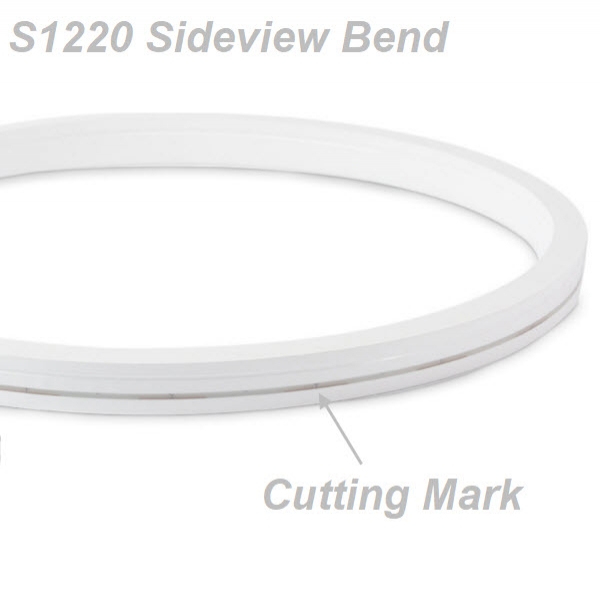

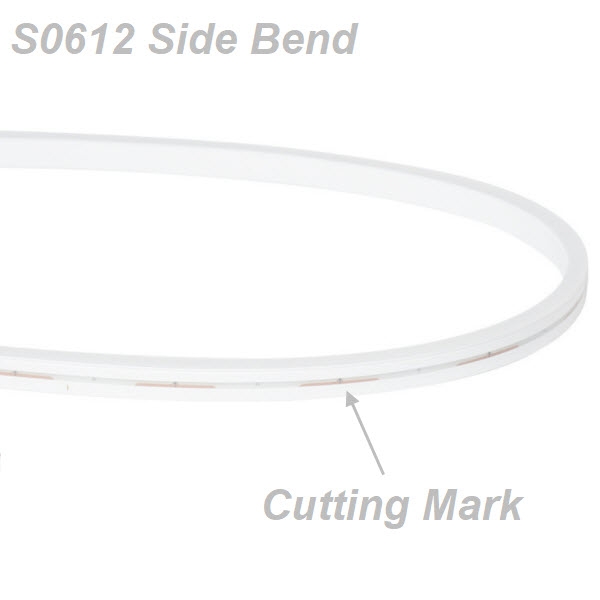

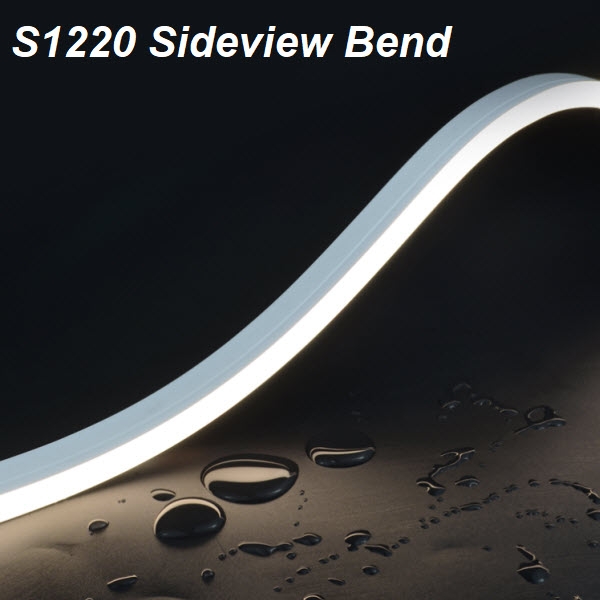

4. Sideview bending, min bending diameter 30mm(S0408),50mm(S0612),200mm(S1220)
5. Optional lead wire: Bare wire, Insulated sheath wire, waterproof connector
6. Standard lead wire length are 300mm both ends, Customized length available.
7. Mounting way: Aluminum clips, Flexible Aluminum profile, Alumiminum extrusion
8. Advice aluminum extrusion: W17.5mm*H22.9mm(S1220),W8.0mm*H13mm(S0612),W6.5mm*H7.2mm(S0408)
9.Please read model named rule before choose model.
10.Luminous data and datasheet, Please send enquiry to sales@gree-leds.com
Model Named Rule
GECV24S1023### GE(Brand),CV(Constant Voltage),24(Voltage),S(Bending direction Sideview),1023(Neon Cross Section Size 10*23mm)
GECC24S1023### GE(Brand),CC(Constant Current),24(Voltage),S(Bending direction Sideview),1023(Neon Cross Section Size 10*23mm)
### Emitting color Code C21:2100K,C24:2400K,C27:2700K,C30:3000K,C35:3500K,C40:4000K,C50:5000K,C60:6000K
### Emitting color Code R:Red,G:Green,B:Blue,Y:Yellow,P:Pink,O:Orange,VW (Variable white dual white),RGB(RGB Color)
### Emitting color code RGBW (RGB22:RGB+2200k,RGB27:RGB+2700K,RGB30:RGB+3000K,RGB40:RGB+4000K,RGB60:RGB+6000K)
Constant Voltage 24V 120º Sideview bending,IP67 12*20mm neon housing,Min bend diameter 200mm
Optional lead wire connection direction:Direct Entry,Side Entry,Bottom Entry
Constant Current 24V 120º Sideview bending,IP67 12*20mm neon housing,Min bend diameter 200mm
Optional lead wire connection driection:Driect Entry,Side Entry,Bottom Entry
Constant Voltage 24V 120º Sideview Bending,IP67 6*12mm neon housing,Min bend diameter 50mm
Optional lead wire connection direction: Direct Entry,Side Entry,Bottom Entry
Constant Current 24V 120º Sideview Bending,IP67 6*12mm neon housing,Min bend diamter 50mm
Optional lead wire connectrion direction: Direct Entry,Side Entry,Bottom Entry
Constant Voltage 24V 120º Sideview Bending,IP67 4*8mm Mini neon housing,Min bend diameter 30mm
Lead wire connection direction: Direct Entry
Model Named Rule
GECV24S1023### GE(Brand),CV(Constant Voltage),24(Voltage),S(Bending direction Sideview),1023(Neon Cross Section Size 10*23mm)
GECC24S1023### GE(Brand),CC(Constant Current),24(Voltage),S(Bending direction Sideview),1023(Neon Cross Section Size 10*23mm)
### Emitting color Code C21:2100K,C24:2400K,C27:2700K,C30:3000K,C35:3500K,C40:4000K,C50:5000K,C60:6000K
### Emitting color Code R:Red,G:Green,B:Blue,Y:Yellow,P:Pink,O:Orange,VW (Variable white dual white),RGB(RGB Color)
### Emitting color code RGBW (RGB22:RGB+2200k,RGB27:RGB+2700K,RGB30:RGB+3000K,RGB40:RGB+4000K,RGB60:RGB+6000K)
Constant Voltage 24V 120º Sideview bending,IP67 12*20mm neon housing,Min bend diameter 200mm
Optional lead wire connection direction:Direct Entry,Side Entry,Bottom Entry
| M/N | Optional Color Code | Cutting Unit(mm) | Optional watt/m | Standard Length | CRI |
| GECV24S1220(CCT) | C21/24/27/30/35/40/50/60 | 50mm | 5/10/15w/m | 5meter | 90+ |
| GECV24S1220(nm) | R/G/B/Y/O/P | 50mm | 5/10/15w/m | 5meter | |
| GECV24S1220VW | 2200-6500k/2700-6500k | 50mm/62.5mm | 5/10/15w/m | 5meter | 90+ |
| GECV24S1220RGB | RGB | 62.5mm/83.3mm | 5/10/15w/m | 5meter | |
| GECV24S1220RGBW | RGB+22/27/30/40/60 | 62.5mm/83.3mm | 5/10/15w/m | 5meter |
Constant Current 24V 120º Sideview bending,IP67 12*20mm neon housing,Min bend diameter 200mm
Optional lead wire connection driection:Driect Entry,Side Entry,Bottom Entry
| M/N | Optional Color Code | Cutting Unit(mm) | Optional watt/m | Standard Length | CRI |
| GECC24S1220(CCT) | C21/24/27/30/35/40/50/60 | 50mm | 5/10/15w/m | 10meter | 90+ |
| GECC24S1220(nm) | R/G/B/Y/O/P | 50mm | 5/10/15w/m | 10meter | |
| GECC24S1220RGB | RGB | 125mm | 11w/m | 10meter | |
| GECC24S1220RGBW | RGB+22/27/30/40/60 | 125mm | 15w/m | 10meter |
Constant Voltage 24V 120º Sideview Bending,IP67 6*12mm neon housing,Min bend diameter 50mm
Optional lead wire connection direction: Direct Entry,Side Entry,Bottom Entry
| M/N | Optional Color Code | Cutting Unit | Optional watt/m | Standard Length | CRI |
| GECV24S0612(CCT) | C21/24/27/30/35/40/50/60 | 50mm | 5/10w/m | 5meter | 90+ |
| GECV24S0612(nm) | R/G/B/Y/O/P | 50mm | 5/10w/m | 5meter | |
| GECV24S0612VW | 2200-6500k/2700-6500k | 50mm/62.5mm | 5/10w/m | 5meter | 90+ |
| GECV24S0612RGB | RGB | 50mm | 5/10w/m | 5meter |
Constant Current 24V 120º Sideview Bending,IP67 6*12mm neon housing,Min bend diamter 50mm
Optional lead wire connectrion direction: Direct Entry,Side Entry,Bottom Entry
| M/N | Optional Color Code | Cutting Unit | Optional watt/m | Standard Length | CRI |
| GECC24S0612(CCT) | C21/24/27/30/35/40/50/60 | 50mm | 5/10w/m | 10meter | 90+ |
| GECC24S0612(nm) | R/G/B/Y/O/P | 50mm | 5/10w/m | 10meter |
Constant Voltage 24V 120º Sideview Bending,IP67 4*8mm Mini neon housing,Min bend diameter 30mm
Lead wire connection direction: Direct Entry
| M/N | Optional Color Code | Cutting Unit | watt/m | Standard Length | CRI |
| GECV24S0408(CCT) | C21/24/27/30/35/40/50/60 | 25mm | 6w/m | 5meter | 90+ |
| GECV24S0408(nm) | R/G/B/Y/O | 25mm | 6w/m | 5meter |
