LED Neon Flex

TOP Bending Flex Neon

    Description:
    1. DC24V IP67 rating 120º beam angle silicone neon Flex。
    2. Constant voltage and Constant current available.
    3. Cross section W*H(mm):16*15mm(T1615),12*12mm(T1212),6*6mm(T0606) neon housing available
    4. Topview bending, min bending diameter 300mm(T1615),200mm(T1212),50mm(T0606)
    5. Optional lead wire: Bare wire, Insulated sheath wire, waterproof connector
    6. Standard lead wire length are 300mm both ends, Customized length available.
    7. Mounting way: Aluminum clips, Flexible Aluminum profile, Alumiminum extrusion
    8. Advice aluminum extrusion: W20.5mm*H17.6mm(T1615),W17.2mm*H14mm(T1212),W8.5mm*H6.1mm(T0606)
    9.Please read model named rule before choose model.
    10.Luminous data and datasheet, Please send enquiry to sales@gree-leds.com

    Model Named Rule

    GECV24T1212###   GE(Brand),CV(Constant Voltage),24(Voltage),T(Bending direction Topview),1212(Neon Cross Section Size 12*12mm)

    GECC24T1212###   GE(Brand),CC(Constant Current),24(Voltage),T(Bending direction Topview),1212(Neon Cross Section Size 12*12mm)

    ###Emitting Color Code    C21:2100K,C24:2400K,C27:2700K,C30:3000K,C35:3500K,C40:4000K,C50:5000K,C60:6000K

    ### Emitting color Code    R:Red,G:Green,B:Blue,Y:Yellow,P:Pink,O:Orange,VW (Variable white dual white),RGB(RGB Color)

    ### Emitting color code    RGBW (RGB22:RGB+2200k,RGB27:RGB+2700K,RGB30:RGB+3000K,RGB40:RGB+4000K,RGB60:RGB+6000K)

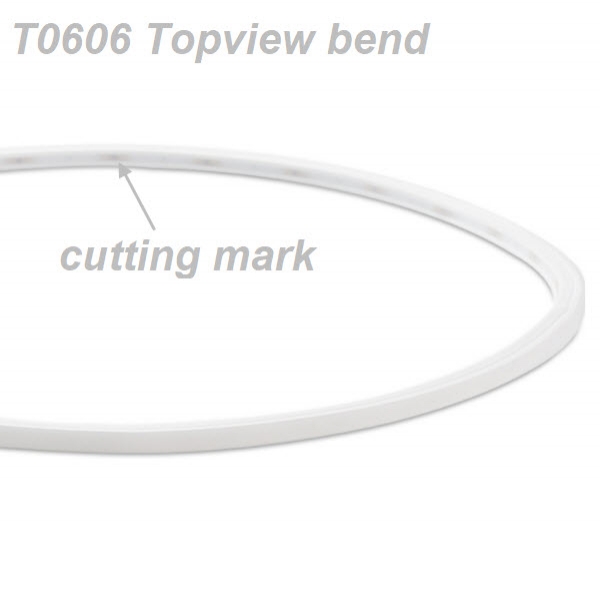

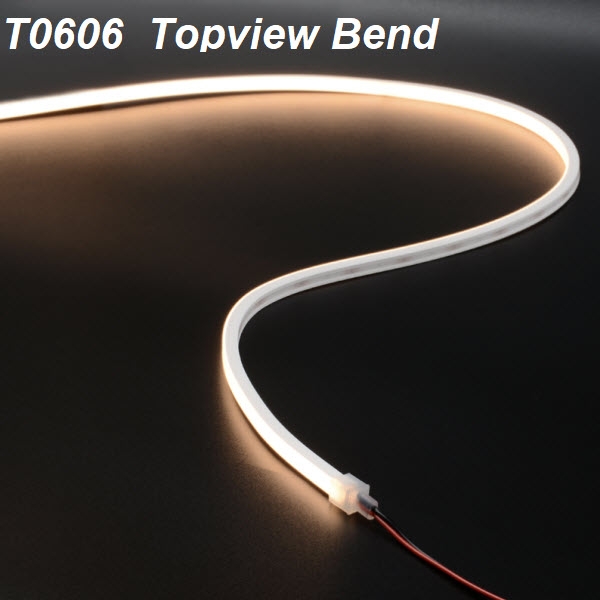

    Constant Voltage 24V 120º Topview bending,IP67 6*6mm Mini neon housing,Min bend diameter 50mm
    Optional lead wire connection direction:Direct Entry,Side Entry,Bottom Entry
    M/N Optional Color Code Cutting Unit watt/m Standard Length CRI
    GECV24T0606(CCT) C21/24/27/30/35/40/50/60 25mm 6w/m 5meter 90+
    GECV24T0606(nm) R/G/B/Y/O 25mm 6w/m 5meter

    Constant Voltage

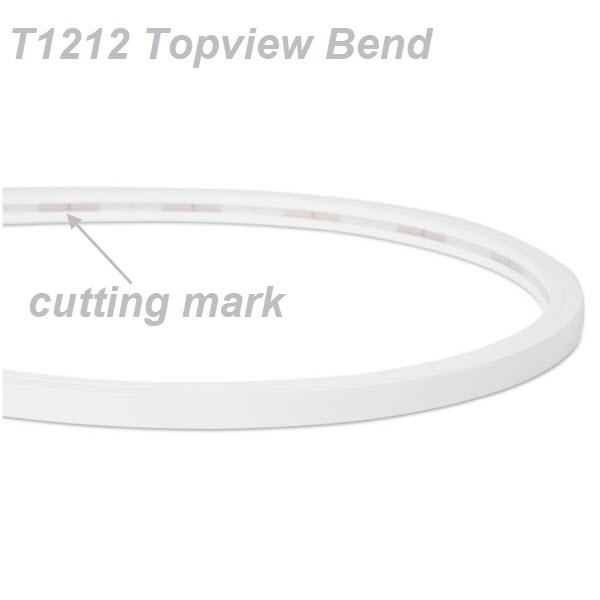

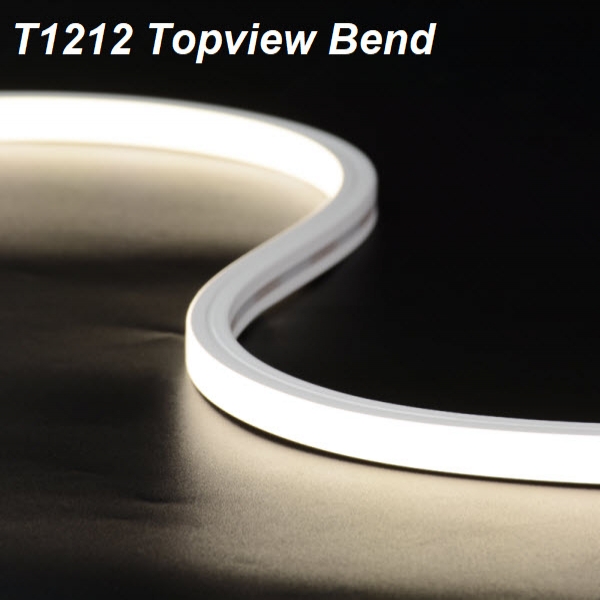

    24V 120º Topview bending,IP67 12*12mm neon housing,Min bend diameter 200mm
    Optional lead wire connection direction:Direct Entry,Side Entry,Bottom Entry
    M/N Optional Color Code Cutting Unit Optional watt/m Standard Length CRI
    GECV24T1212(CCT) C21/24/27/30/35/40/50/60 50mm 5/10w/m 5meter 90+
    GECV24T1212(nm) R/G/B/Y/O/P 50mm 5/10w/m 5meter
    GECV24T1212VW 2200-6500K/2700-6500K 50mm/62.5mm 5/10w/m 5meter 90+
    GECV24T1212RGB RGB 50mm/62.5mm 5/10w/m 5meter

    Constant Current 24V 120º Topview bending,IP67 12*12mm  neon housing,Min bend diameter 200mm
    Optional lead wire connection direction:Direct Entry,Side Entry,Bottom Entry
    M/N Optional Color Code Cutting Unit Optional watt/m Standard Length CRI
    GECC24T1212(CCT) C21/24/27/30/35/40/50/60 50mm 5/10w/m 10meter 90+
    GECC24T1212(nm) R/G/B/Y/O/P 50mm 5/10w/m 10meter

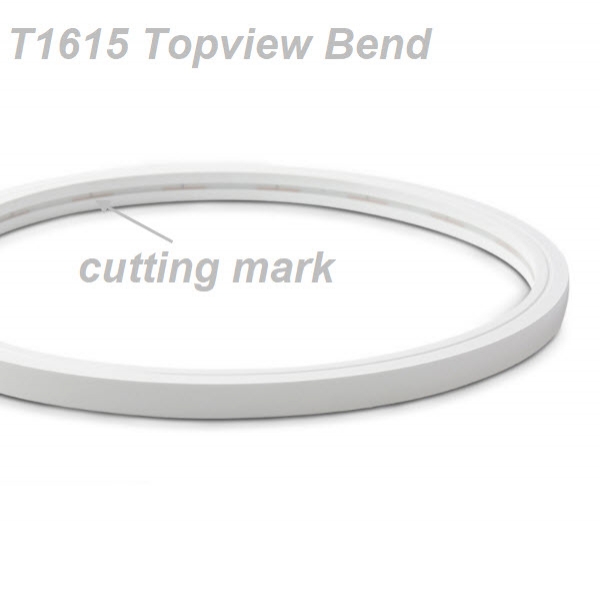

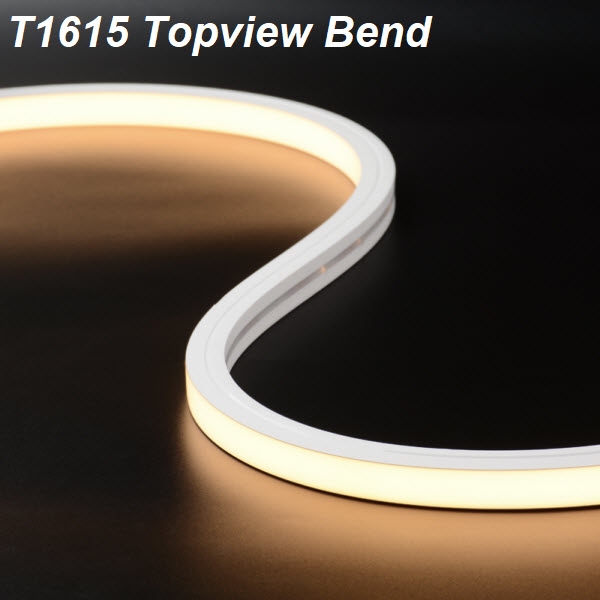

    Constant Voltage 24V 120º Topview bending,IP67 16*15mm neon housing,Min bend diameter 300mm
    Optional lead wire connection direction:Direct Entry,Side Entry,Bottom Entry
    M/N Optional Color Code Cutting Unit Optional watt/m Standard Length CRI+
    GECV24T1615(CCT) C21/24/27/30/35/40/50/60 50mm 5/10/15w/m 5meter 90+
    GECV24T1615(nm) R/G/B/Y/O/P 50mm 5/10/15w/m 5meter
    GECV24T1615VW 2200-6500k/2700-6500k 50mm/62.5mm 5/10/15w/m 5meter 90+
    GECV24T1615RGB RGB 62.5mm/83.3mm 5/10/15w/m 5meter
    GECV24T1615RGBW RGB+22/27/30/40/60 62.5mm/83.3mm 5/10/15w/m 5meter

    Constant Current 24V 120º Topview bending,IP67 16*15mm neon housing,Min bend diameter 300mm
    Optional lead wire connection direction:Direct Entry,Side Entry,Bottom Entry
    M/N Optional Color Code Cutting Unit Optional watt/m Standard length CRI+
    GECC24T1615(CCT) C21/24/27/30/35/40/50/60 50mm 5/10/15w/m 10meter 90+
    GECC24T1615(nm) R/G/B/Y/O/P 50mm 5/10/15w/m 10meter
    GECC24T1615RGB RGB 125mm 11w/m 10meter
    GECC24T1615RGBW RGB+22/27/30/40/60 125mm 15w/m 10meter
    File Name : Format: Size: Download:
