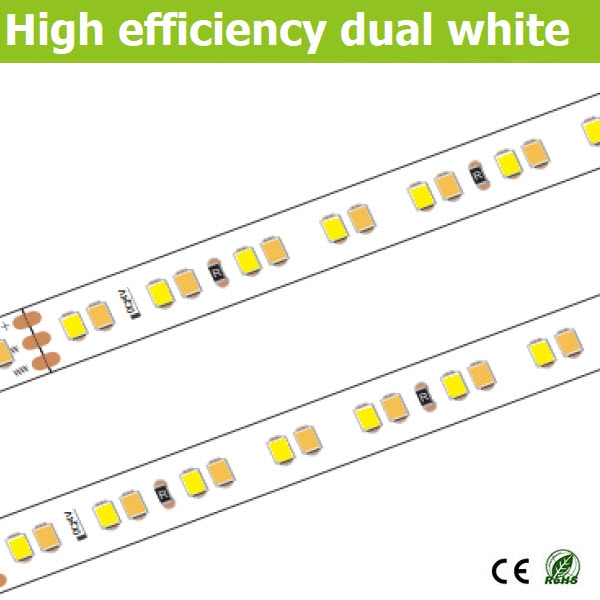

1. Input Voltage 24V,High light efficiency design
2. 256leds/m（128pcs 2700k+128pcs 6500K),SMD2835
3. CCT variable range from 2700k to 6500k
4. Power comsuption: 2700K 9.6W/M, 6500K 9.6W/M, Full light Max 19.2W/M
5. Light efficiency: 110lum/w (2700k@CRI90+),120lum/w (6500k@CRI90+)
6. Light efficiency: 130lum/w (2700k@CRI80+),140lum/w (6500k@CRI80+)
7. 12mm width 3OZ Double-layer flexible white PCB.
8. 62.5mm/4.921" intervals cutting
9. Both ends wired with 15cm 3*Awg20 wire.
10. Standard length is 5meter/16.4‘ per reel, support customs length.
11. 3M adhesive tape backing
12. IP21/IP65/IP67/IP68 available.
13. CE,Rohs certificate,3years warranty
| M/N | Size | IP Rate | Voltage | Leds Type | Leds/m | CRI | CCT | Luminous/m | View Angle | Power/M |
| GE256VW2835ERP80 | 5000*12*1.5mm | IP21 | 24V | SMD2835 | 256 | 80+ | WW:2700k CW:6500K |
WW:1248lum/m CW:1344lum/m |
120 | Max 19.2W/m |
| GE256VW2835ERP90 | 5000*12*1.5mm | IP21 | 24V | SMD2835 | 256 | 90+ | WW:2700K CW:6500K |
WW:1056lum/m CW:1152lum/m |
120 | Max 19.2W/m |
