1. Input Voltage DC12V/24V

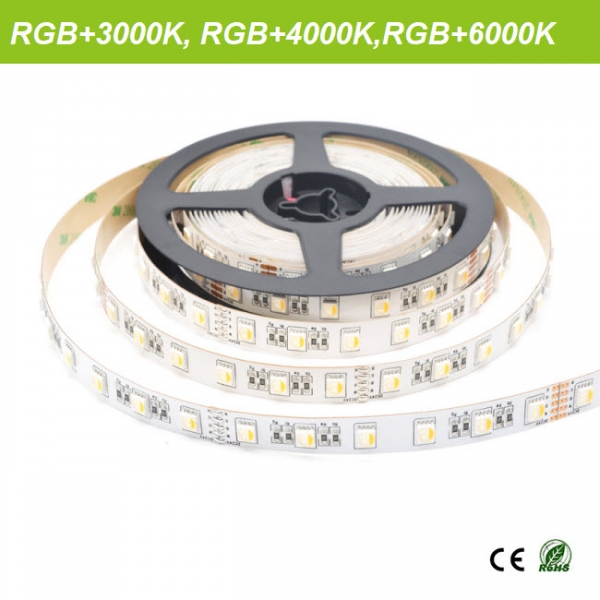

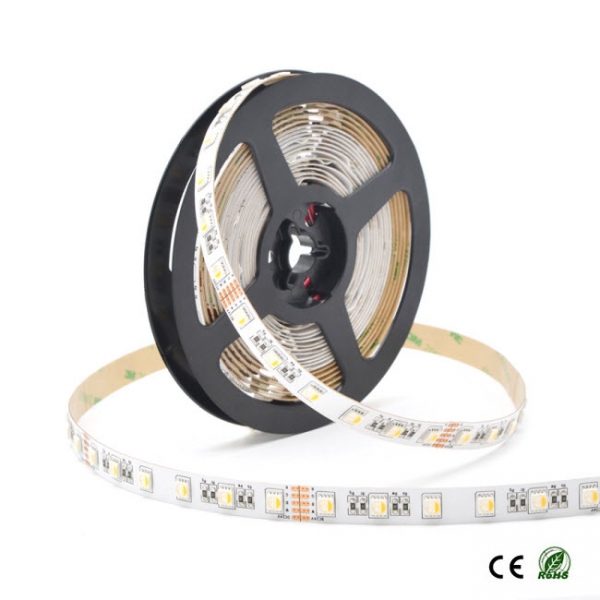

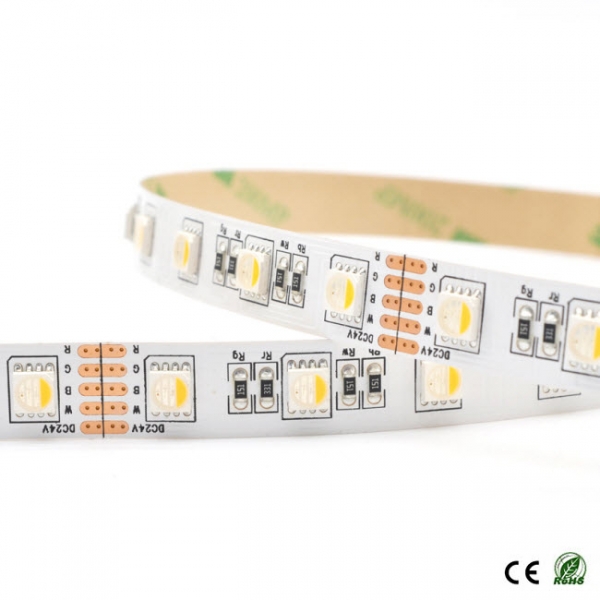

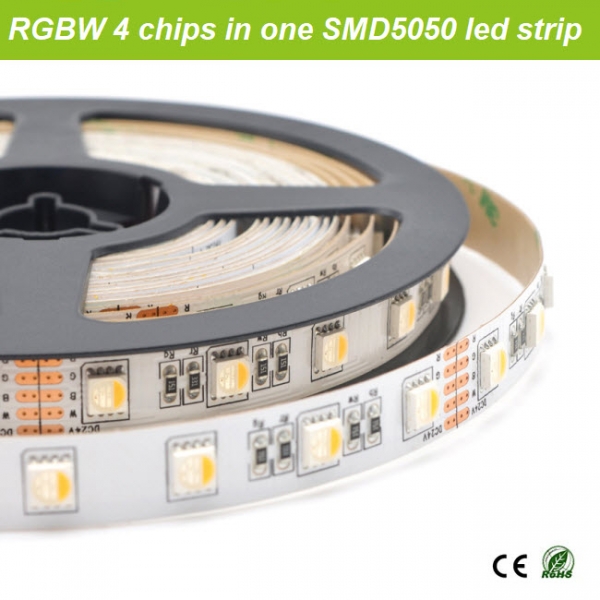

2. 60leds/m,72leds/m,84leds/m . RGBW 4Chips in one SMD5050 LED.
3. Power comsuption 17.2 Watt/M,23.0Watt/m,26.8Watt/m.
4. RGB+3000k, RGB+4200K,RGB+6200K available, CRI90+.
5. 10mm/12mm width 3OZ Double-layer flexible white PCB.
6. 50mm/1.97",41.67mm/1.64",35.7mm/1.40" intervals cutting point with 12V led strip.
7. 100mm/3.94",83.3mm/3.28",71.4mm/2.81" intervals cutting point with 24V led strip.
8. Both ends wired with 15cm 5*Awg20 white/bule/green/red/black wire.
9. Standard length is 5meter/16.4‘ per reel, support customs length.
10. 3M adhesive tape backing
11. IP21/IP65/IP67/IP68 available.
12. CE,Rohs certificate,3years warranty
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | Leds/m | Color | CCT | Luminous/m | Angle | Watt/m |
| GE60RGBW5050A GE60RGBW5050B GE60RGBW5050C GE60RGBW5050D |
5000*10*3.0 5000*10*3.5 5000*12*4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC12V DC24V |
SMD5050 (4chips in one) |
60 | RGBW | 3000K 4200k 6200k |
WW:400lm NW:430lm W:440lm RGB:410lm |
120 | 17.2W |
| GE72RGBW5050A GE72RGBW5050B GE72RGBW5050C GE72RGBW5050D |
5000*12*3.0 5000*12*3.5 5000*14*4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050 (4chips in one) |
72 | RGBW | 3000K 4200k 6200k |
WW:480lm NW:500lm W:510lm RGB:500lm |
120 | 23.0W |
| GE84RGBW5050A GE84RGBW5050B GE84RGBW5050C GE84RGBW5050D |
5000*12*3.0 5000*12*3.5 5000*14*4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC12V DC24V |
SMD5050 (4chips in one) |
84 | RGBW | 3000K 4200k 6200k |
WW:560lm NW:590lm W:600lm RGB:560lm |
120 | 26.8W |
| Remark: RGBY available. | ||||||||||
