LED Accessories

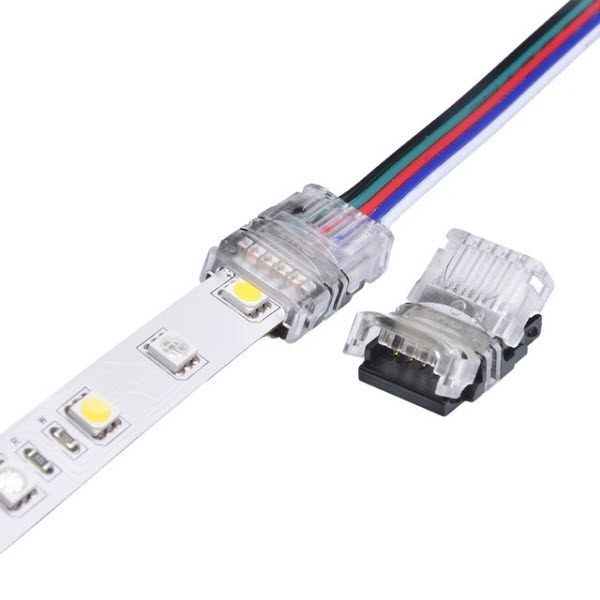

Newest solderless Connector

1. new design brings users the safety
2. fastest and most convenient way to connection.
3. welding-free, arbitrary cutting wire length.
4. No tin is added at the end of the wire, and no insulating skin is peeled off
5.The innovative internal connection structure,better occlusion force and  stable connection.
6.transparent shell,good light transmittance and reduce dark area

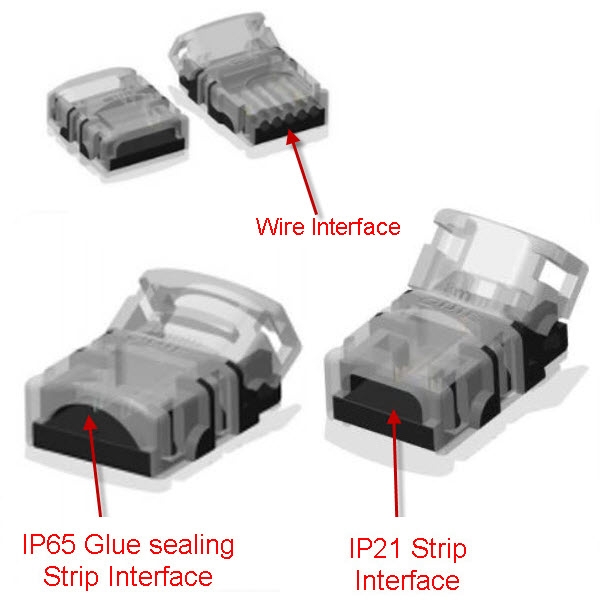

    1. IP21 series/IP65 seires available

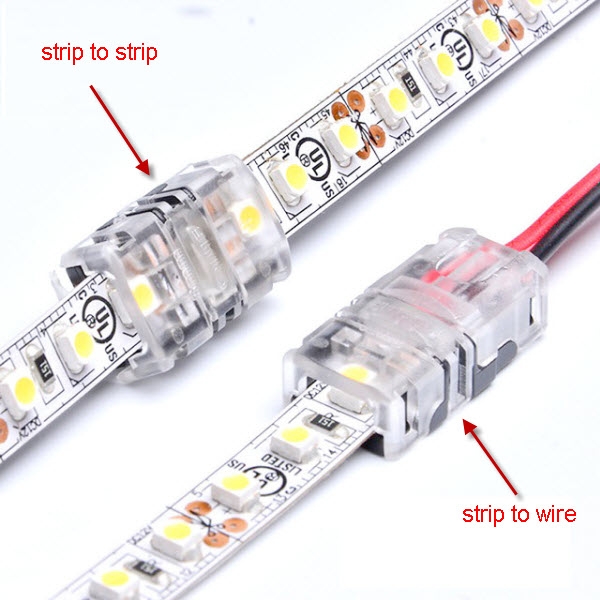

    2. Strip to strip type or Strip to wire type,waterclear Polycarbonate shell.

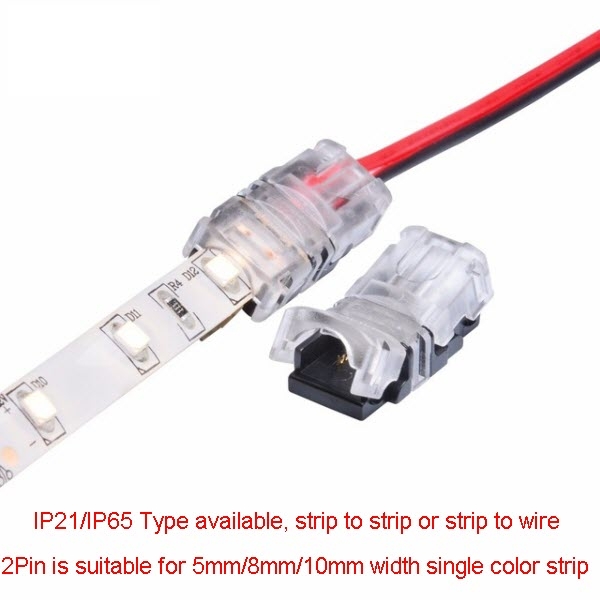

    3. 2Pin is suitable for 5mm/8mm/10mm width single color strip

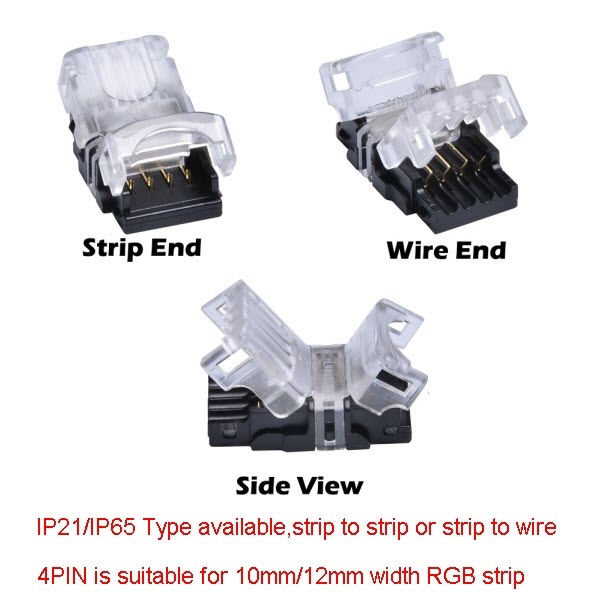

    4. 4Pin is suitable for 10mm/12mm width RGB led strip

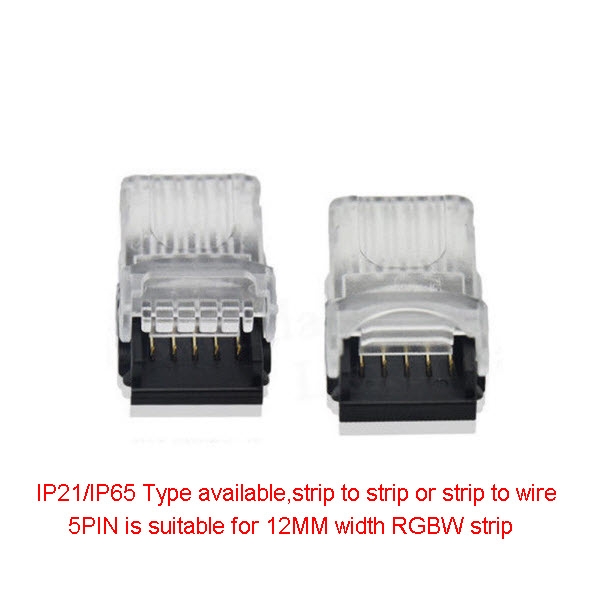

    5. 5Pin is suitable for 12mm width RGBW/RGBY led strip
    6. Conductor cross section:0.35 mm²~0.75 mm²(AWG22~AWG18)
    7. wire diameter (including insulation):Φ1.5 mm~Φ 2.1mm
    8. Rated current is less than 5A/CH
    9. Working ambient temperature: - 20 ~65 degree
    10. Package 100Pcs/Bag

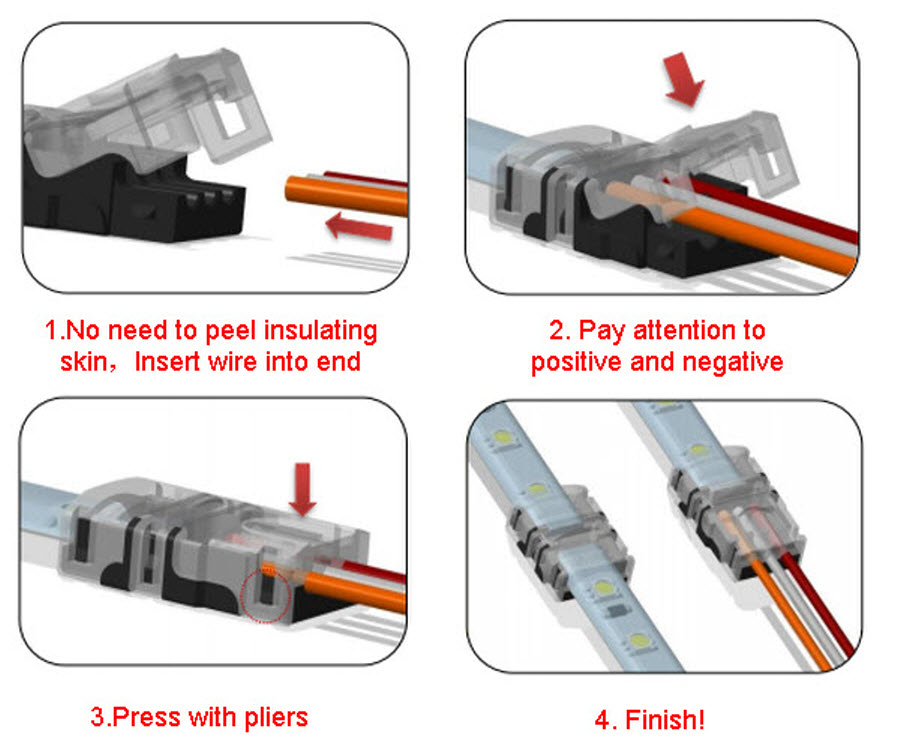

    DIY Install Specification (wire to connector)

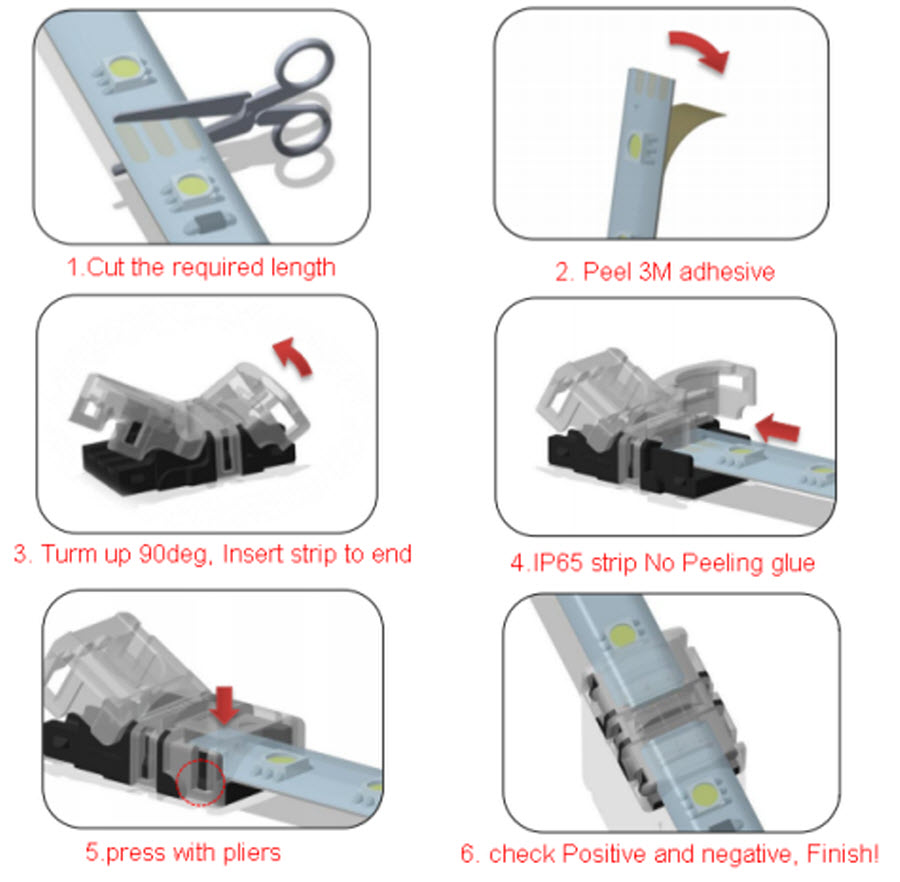

    DIY Install specification( strip to connector)
