LED Addressable Matrix

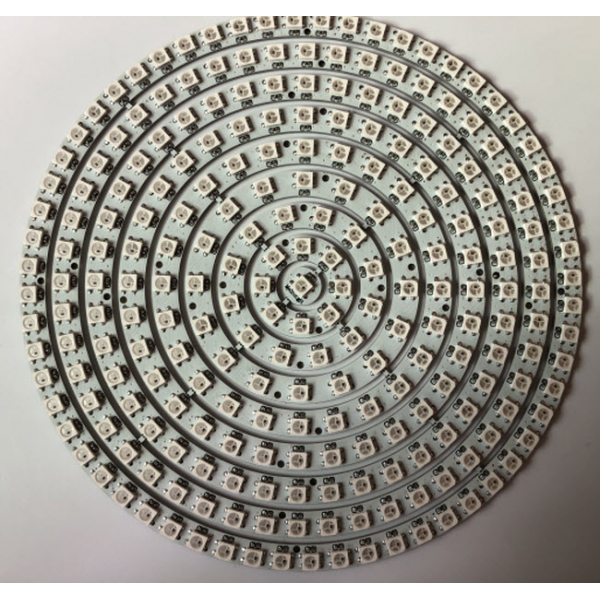

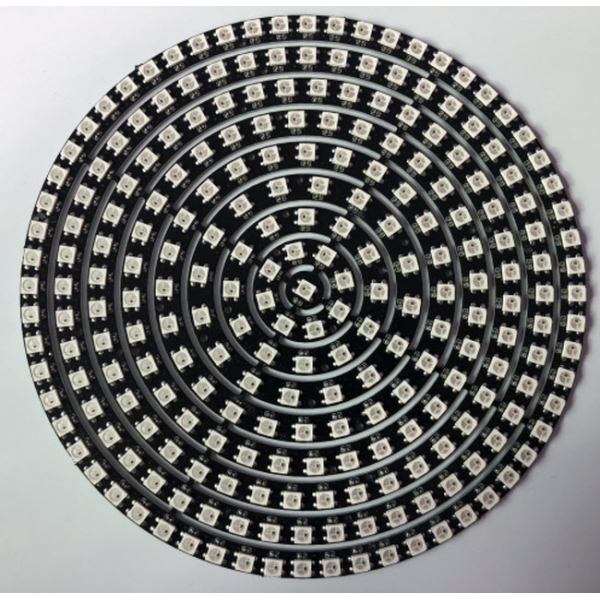

digital led round board 241leds

    1. Input Voltage DC5V, Single signal (data) control.
    2. WS2812B/SK6812 chip built in SMD5050 led,each led is programmable
    3. 241leds, RGB/RGBW/3000k/4000k/6000k Available

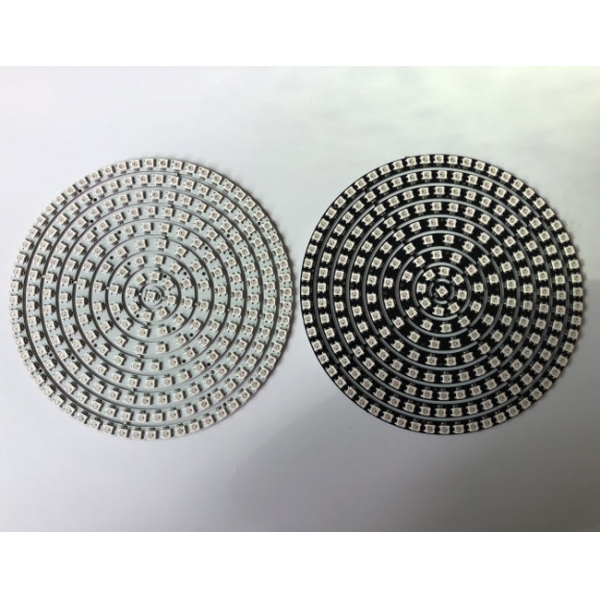

    4. White PCB/Black PCB available.
    5. Entire product can be disassembled into 9pcs indiviual led ring.
    6. Controller System:Arduino Microcontroller , DMX controller , Artnet.
    7.All circuit connections have been completed without additional work.

    Product Model
    M/N Input voltage LED QTY IC Type Color PCB material Indiviual
    Ring width
    Ring No. LED QTY Inner DIA Outer  DIA
    241 leds Ring DC5V 241Pcs SK6812 Built in RGB
    RGBW
    3000K
    4000K
    6000K
    FR4
    Rigid PCB
    8mm 1 1 12mm
    2 8 16mm 32mm
    3 12 36mm 52mm
    4 16 56mm 72mm
    5 24 76mm 92mm
    6 32 96mm 112mm
    7 40 116mm 132mm
    8 48 136mm 152mm
    9 60 156mm 172mm
     Remark: The entire product can be disassembled into 9pcs indiviual led ring
