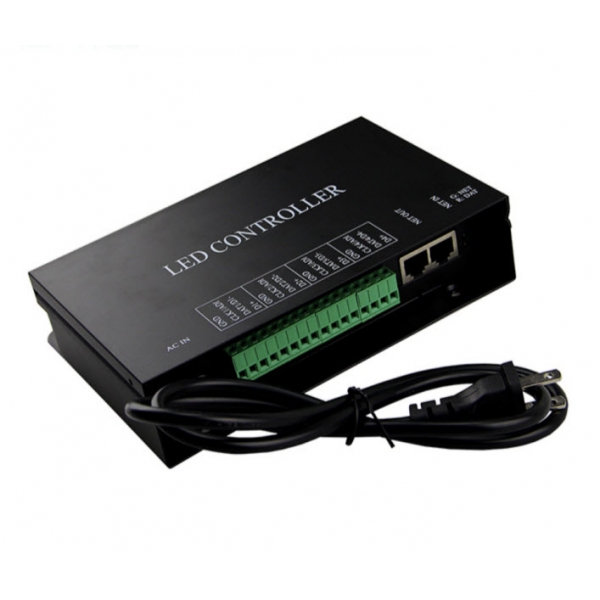

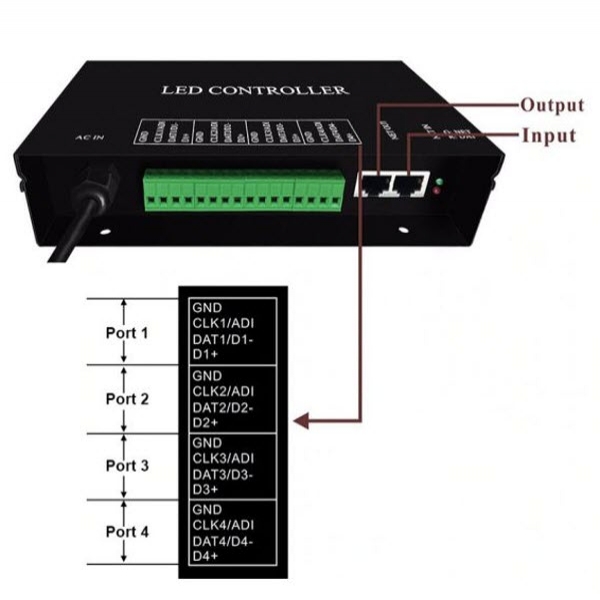

H802RA is a four ports output controller that base on Ethernet protocol and supports Art-Net protocol. It supports almost all of
digital led strip‘ IC SPI protocol and DMX512 Protocol,It also can edit address of DMX512 led light .The input network interface
can be wired to master controller or computer.Online control led light via software "LED Studio" or "MADRIX".
Ledstudio software link:https://drive.google.com/file/d/1Kwdyguc_2jDd52TI-2kItCbGhA2Y9dJz/view?usp=sharing
H802RA Manual link:https://drive.google.com/file/d/1Y-_ucCGnFz3ZCe3Y0zBXKDVh4nI6KkSp/view?usp=sharing
H802RA to PC link: https://drive.google.com/file/d/1OYgNl55YuDQOhbr7mKz9Pjzxlpox-bGW/view?usp=sharing
LED Build tutorial video link:https://drive.google.com/file/d/1cJXGyjSDFu_fdLG5BEq3V7y9YpYcMf8t/view?usp=sharing
digital led strip‘ IC SPI protocol and DMX512 Protocol,It also can edit address of DMX512 led light .The input network interface
can be wired to master controller or computer.Online control led light via software "LED Studio" or "MADRIX".
Ledstudio software link:https://drive.google.com/file/d/1Kwdyguc_2jDd52TI-2kItCbGhA2Y9dJz/view?usp=sharing
H802RA Manual link:https://drive.google.com/file/d/1Y-_ucCGnFz3ZCe3Y0zBXKDVh4nI6KkSp/view?usp=sharing
H802RA to PC link: https://drive.google.com/file/d/1OYgNl55YuDQOhbr7mKz9Pjzxlpox-bGW/view?usp=sharing
LED Build tutorial video link:https://drive.google.com/file/d/1cJXGyjSDFu_fdLG5BEq3V7y9YpYcMf8t/view?usp=sharing
| Model Number | H802RA |
| Power Consumption | 1.5W |
| Control Pixel QTY | Max 4096pixel (1024Pixel*4Port) |
| Product Dimension | L180mm*W126mm*H43mm |
| Package Size | L205mm*W168mm*H69mm |
| Input Voltage | AC100-240V |
| Optional Power Plug | EU Standard,UK Standard,AU Standard,USA Standard etc |
| Operation Temperature | -40℃~85℃ |
| G.W | 1.0kg/pc |
Support IC Protocol list:
Single signal SPI: WS2811,WS2812B,UCS1903,UCS2903,UCS2912,SM1603,TM1809 etc
Dual signal SPI:LPD8806,APA102,SK9822 etc
DMX512 Signal: UCS512,SM18512 etc

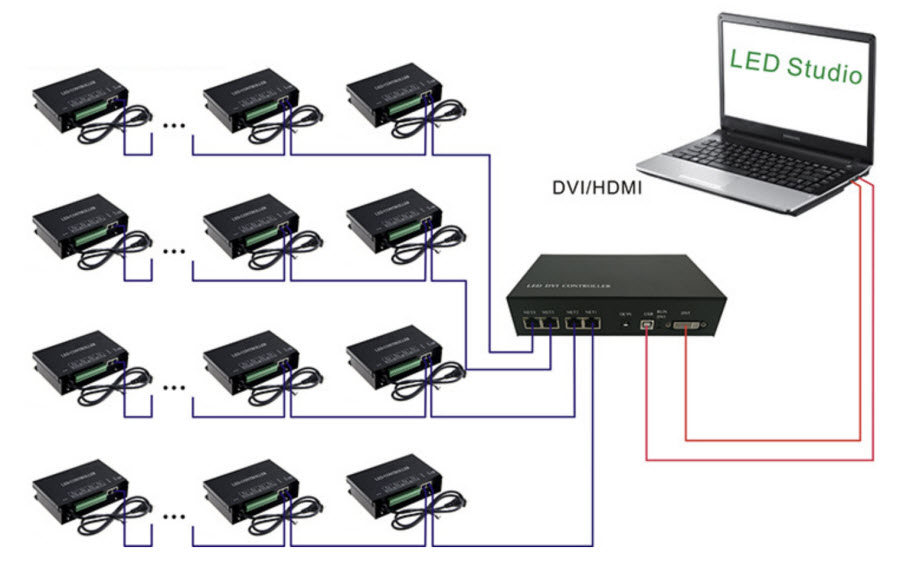

Cascaded H802RA drawing for large projects:
Single signal SPI: WS2811,WS2812B,UCS1903,UCS2903,UCS2912,SM1603,TM1809 etc
Dual signal SPI:LPD8806,APA102,SK9822 etc
DMX512 Signal: UCS512,SM18512 etc
Cascaded H802RA drawing for large projects:
