LED Controller

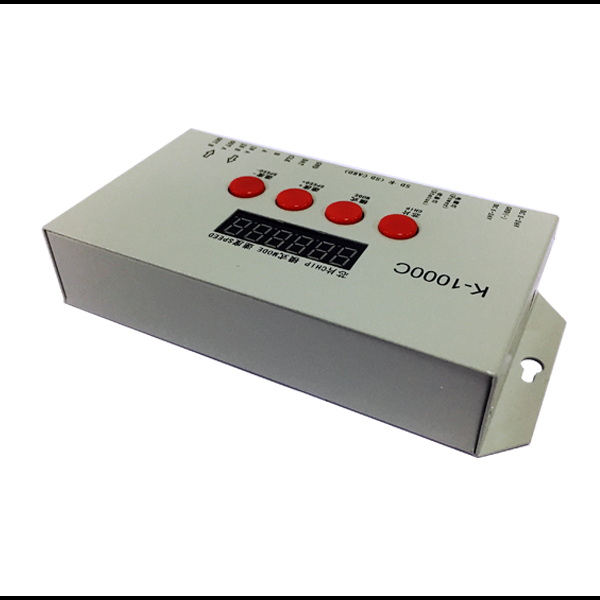

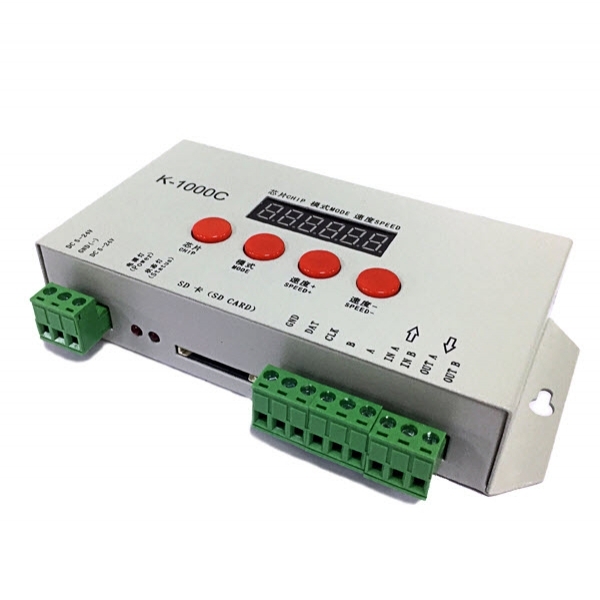

digital led strip controller

Model No.: K-1000C
Software: LEDEDIT-K (2019)

    1、32 to 65536 degree Gray control, Gamma correction procession handle.
    2、Support various point, line light source, and all kinds of rules and specific shaped handle.
    3.The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).
    4、Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 128MB-32GB.
    5、The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use  pure copper power cord.

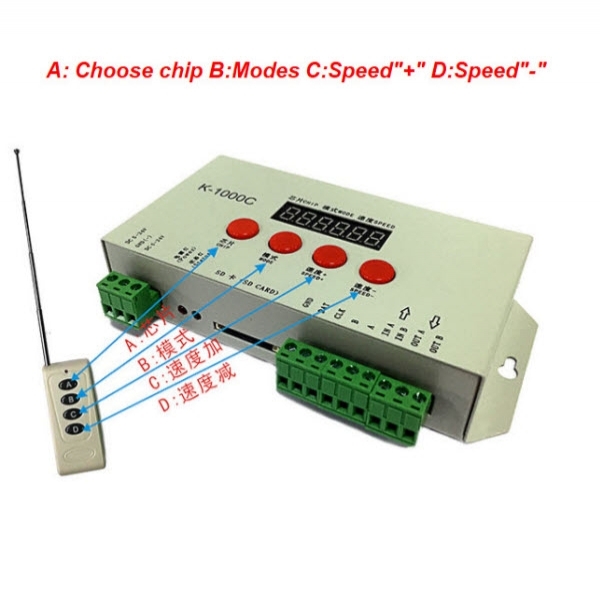

    6、The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
    7、For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
    8、Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
    9、Enhanced 485 TTL and 485 differential (DMX) signal output.
    10、The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

    Support chips(PC Software Select K-1000-RGB):
    00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;
    INK1003;LX3203,1603,1103;GS8205,8206;SK6812(max. Supports lights 2048pixels)
    01:SM16716,16726(support up to 2048 pixels)
    02:P9813(support up to 2048 pixels)
    03:LPD6803(support up to 2048 pixels)
    04:LX1003,1203(support up to 2048 pixels)
    05:WS2801(support up to 2048 pixels)
    06:LPD1886(support up to 2048 pixels)
    07:TM1913(support up to 2048 pixels)
    08:TM1914(support up to 2048 pixels)
    09:P9883,P9823(support up to 2048 pixels)
    10:DMX(support up to 512 pixels, suggest to support ≤320 pixels)
    11:DMX 500K(support up to 512 pixels, suggest to support ≤320 pixels)
    12:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
    13:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
    14: UCS5603-Test
    15: UCS5603A(max. Supports lights 2048 pixels)
    16: UCS5603A(max. Supports lights 2048 pixels)
     17: TM1814
    18: INK1003
    19: APA102
    File Name : Format: Size: Download:
