LED Controller

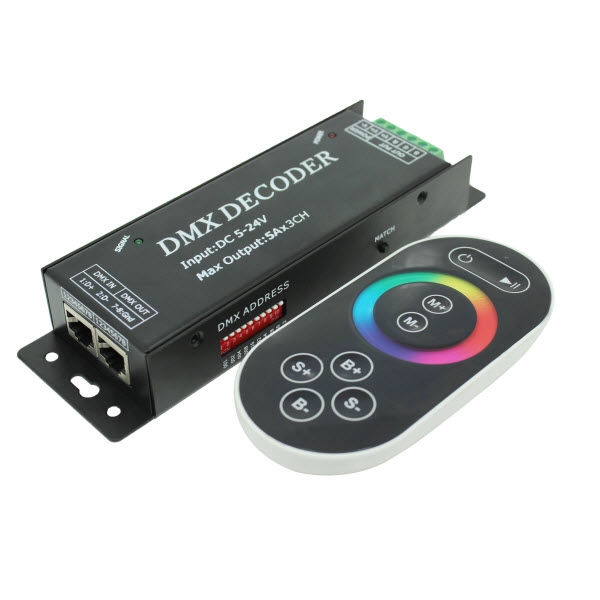

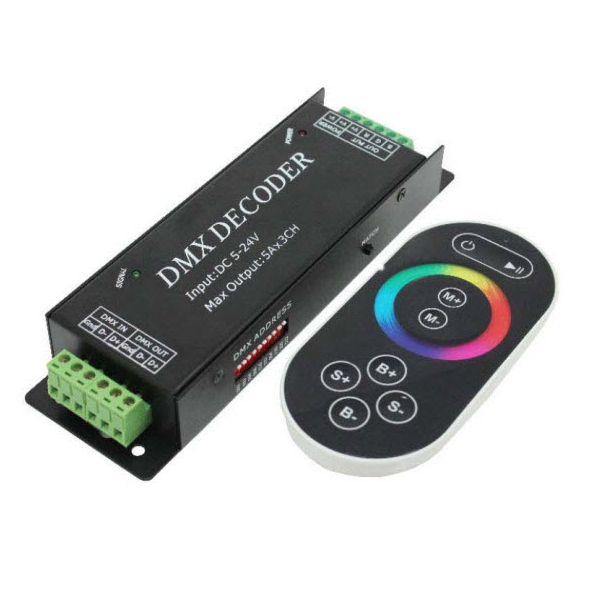

DMX512 Led controller Remote


    The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal
    that is widely used in the and transformes it into PWM signal to drive LED; the port of DMX signal has lightning

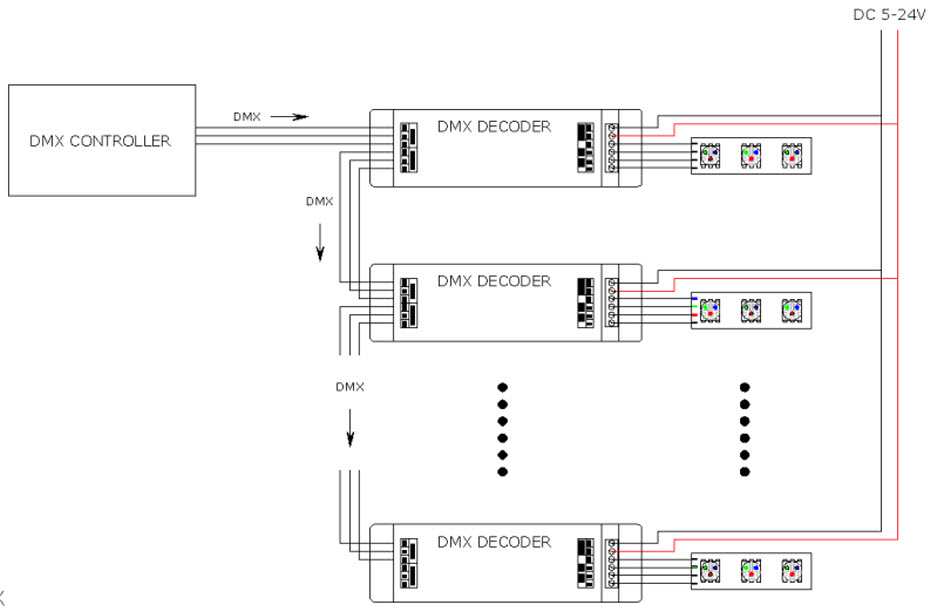

     protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder
     with DMX digital console to achieve dimming or various changes in procedures. Not connectied with DMX console,
     you can choose select the built-in 11 kinds of default patterns through the wireless remote control.

    Technical Parameters
    ● Working temperature: -20-60 ℃
    ● Input voltage: DC5-24V
    ● Output: 3 channel
    ● Connection mode: common anode
    ● External dimension: L175 * W53 * H27(mm)
    ● Packing size: L180 * W58 * H58(mm)
    ● Net weight: 300g
    ● Gross weight: 350g
    ● Output current: <5A (each channel)
    ● Output power: 5V:<75W,  12V:<180W,  24V:<360W
    ● DMX ieterface: RJ45 cable interface or green terminal interface

       Touch remote
      ● Working temperature: -20-60℃
      ● Power supply mode: AAA*3 battery
      ● Supply voltage: 1.5V*3
      ● Standby power consumption: 0.015mW
      ● Standby current: 3uA
      ● Emission current: 10mA
      ● Remote distance: 15m
      ● Standby time: 6 months
