LED Controller

SPI/DMX led light controller

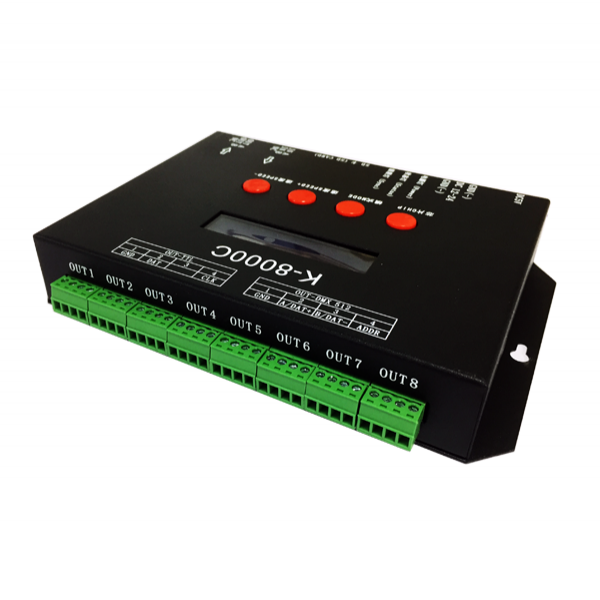

Model No.: K-8000C
Software: LEDEDIT-K(2019)
Editting address function for DMX led light

    1、32 to 65536 degree Gray control, Gamma correction procession handle.
    2、Support various point, line light source, and all kinds of rules and specific shaped handle.
    3、The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
    4、The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
    5、The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use pure copper power cord.
    6、The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
    7、For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
    8、Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
    9、Enhanced 485 TTL and 485 differential (DMX) signal output.
    10、The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

    Support chips(PC Software Select K-8000-RGB):
    00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;
    8206;SK6812(Support up to 1024*8=8192 pixels)
    01:SM16716,16726(Support up to 1024*8=8192 pixels)
    02:P9813(Support up to 1024*8=8192 pixels)
    03:LPD6803(Support up to 1024*8=8192 pixels)
    04:LX1003,1203(Support up to 1024*8=8192 pixels)
    05:WS2801(Support up to 1024*8=8192 pixels)
    06:LPD1886(Support up to 1024*8=8192 pixels)
    07:TM1913(Support up to 1024*8=8192 pixels)
    08:TM1914(Support up to 1024*8=8192 pixels)
    09:P9883,P9823(Support up to 1024*8=8192 pixels)
    10:DMX(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
    11:DMX 500K(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
    12:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
    13:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
    NOTES: 1.If support RGBW four channels’ lights should select K-8000-RGBW.
          2.If support single channel light should choose K-8000-W, at this time, one channel means one pixel, the software effect make as white lighting.
