Feature&Application
• Controllable Via SPI Controller or lighting console(DMX) , Breakpoint resume pixel led strip built in neon housing.
• Environmental protection grade silicone material,uniform lighting surface and no shadow
• high transparency and high strength, Decorative lighting and Linear lighting
• Stage festival event ,Indoor and outdoor lighting
Optional Model
Optional Model
| M/N:GE10PRGB8806A9SN24 24V-10Pixel-RGB-GS8208 Break point signal continuously transmisson |
| M/N:GE12PRGB8806A9SN24 24V-12Pixel-RGB-GS8208 Break point signal continuously transmisson |
Technical Data
| Cross Section size:16*16mm (T1616) | Input Voltage: DC24V |
| Power consumption: 14.4w/m@10px/m 17.2w/m@12px/m | Emitting Color: RGB |
| Control protocol: WS2815,GS8208,SK6813 | Cutting unit:100mm@10px/m,83.3mm@12px/m |
| LED Qty: 60Leds/m Pixel Qty:10Pixel/m | IP Rating: IP67 |
| LED Qty: 72Leds/m Pixel Qty:12Pixel/m | Bend direction: Topview |
| Standard length:5meter | Min Bend Diameter:200mm |
| Mounting: Aluminum Clips/Aluminum Profile | Beam Angle: 120° |
| Operating Temp: Min = -20°C , Max = 45°C | Warranty:3years |
| Optional Connection Way: 4Pin JST SM Connector, 4 core Insualted sheath wire,4Pin waterproof connector |
| Optional Connection direction: Side Entry(left or right), Direct Entry |
| Luminous Flux(10px/m): Red:165Lm/m Green:330Lm/m Blue:120Lm/m |
| Luminous Flux(12px/m): Red:200Lm/m Green:400Lm/m Blue:150Lm/m |

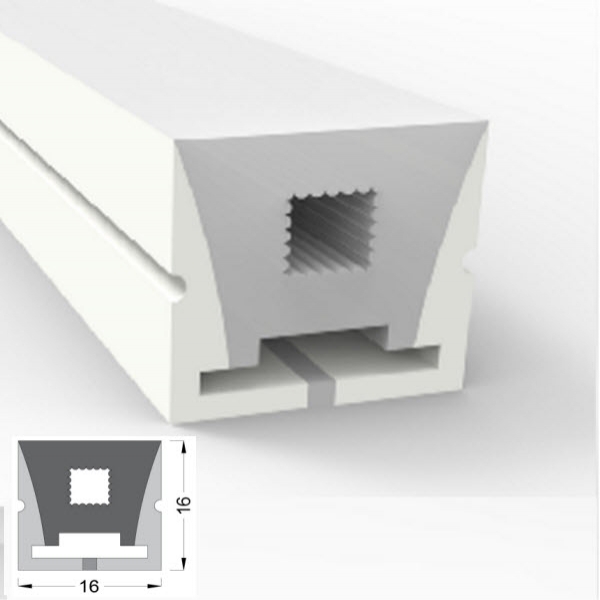

Dimension
Mounting way
