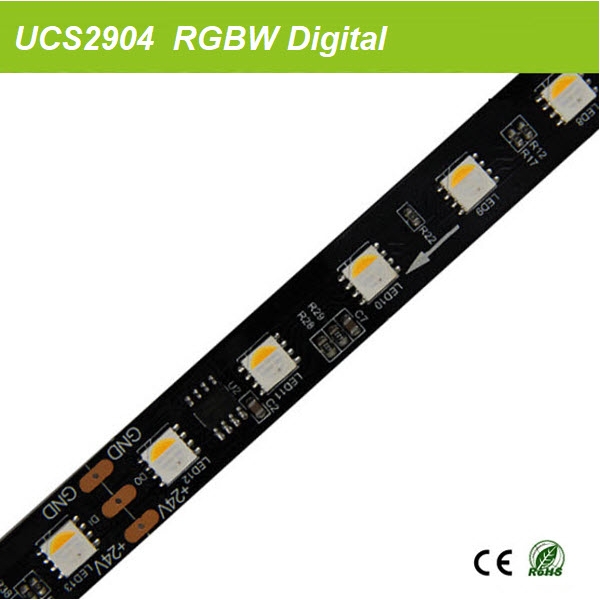

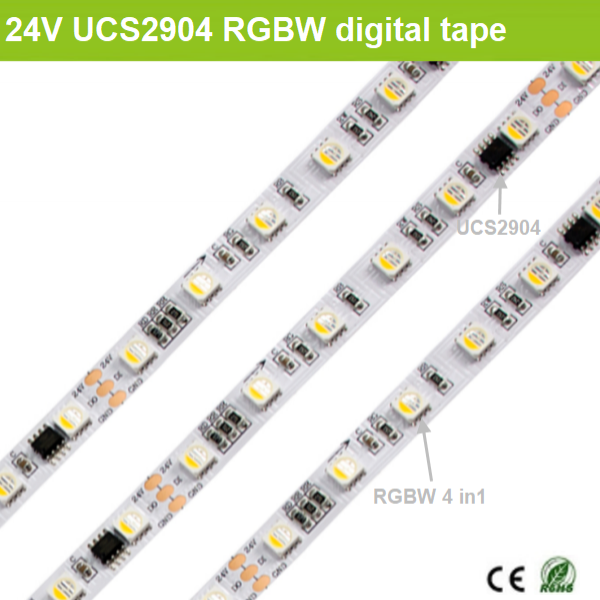

1. Input Voltage DC24V, UCS2904 Protocol (Pwm scanning frequency 1.8khz)
2. 6leds=1Pixel. 60leds/m(10pixel/m),72leds/m(12pixel/m)
3. RGB+2700/3000/4000/6000k available,white colour rending index＞90
4. 100mm/3.93"@10px/m cutting unit,83.3mm/3.28"@12px/m cutting unit
5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
7. 3M adhensive tape stick on the back of non-waterproof version.
8. Controller System：SD controller , DMX controller , Artnet.
| Product Model | ||||||||||
| M/N | Size/mm | IP Rate | Voltage | Led type | IC type | Leds/m | Pixel/m | Luminous/m | Angle | Watt/m |
| GE60RGBW2904A GE60RGBW2904B GE60RGBW2904C GE60RGBW2904D |
5000*10*3.0 5000*10*3.5 5000*12.4.0 5000*12*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050RGBW 4 chips in one |
UCS2904 External | 60 | 10 | R: 180lm G:300lm B:132lm W:360lm |
120 | 19.2w |
| GE72RGBW2904A GE72RGBW2904B GE72RGBW2904C GE72RGBW2904D |
5000*12*3.0 5000*12*3.5 5000*14.4.0 5000*14*4.0 |
IP21 IP65 IP67 IP68 |
DC24V | SMD5050RGBW 4 chips in one |
UCS2904 External | 72 | 12 | R: 216lm G:360lm B:159lm W:432lm |
120 | 23.0w |
Remarks: For above two model. led strip, RGBY (RGB+Yellow) available.
