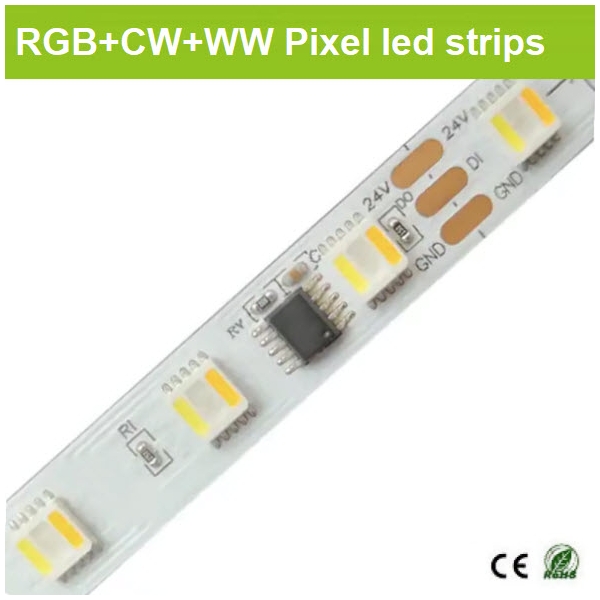

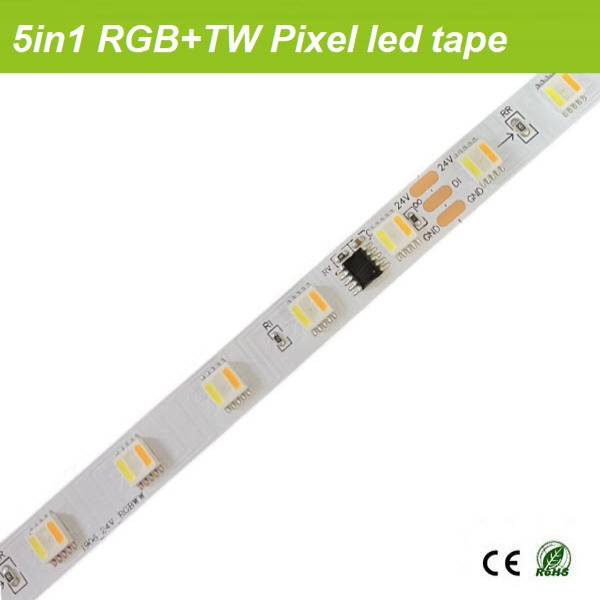

1. Input Voltage DC24V, Single data signal control.
2. Emitting color:RGB+WW(2400-2600k)+CW(6000-6500K)
3. 60leds/m, 10pixel/m, 6leds=1Pixel
4. 10mm white/black PCB,100mm Cutting unit.
5. FW1906 IC, Fpwm=2.6khz,support 800kbps data rate.
6. IP rating :IP20,IP65,IP67,IP68 available
7. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
8. Standard length: 5m/Reel
| M/N | IP Rating | L*W*H(mm) | Input voltgae | leds/m | Pixel/m | watt/m | Fpwm | Emiting color | Lm/M |
| GE60RGBTW1906A24 | IP20 | 5000*10*2.5mm | 24V | 60 | 10 | 18w/m | 2.6khz | RGB+TW | R:120 G:300 |
| GE60RGBTW1906B24 | IP65 | 5000*10*3.0mm | 24V | 60 | 10 | 18w/m | 2.6khz | RGB+TW | B:90 |
| GE60RGBTW1906C24 | IP67 | 5000*12*4.0mm | 24V | 60 | 10 | 18w/m | 2.6khz | RGB+TW | WW:340 |
| GE60RGBTW1906D24 | IP68 | 5000*12*4.5mm | 24V | 60 | 10 | 18w/m | 2.6khz | RGB+TW | CW:390 |

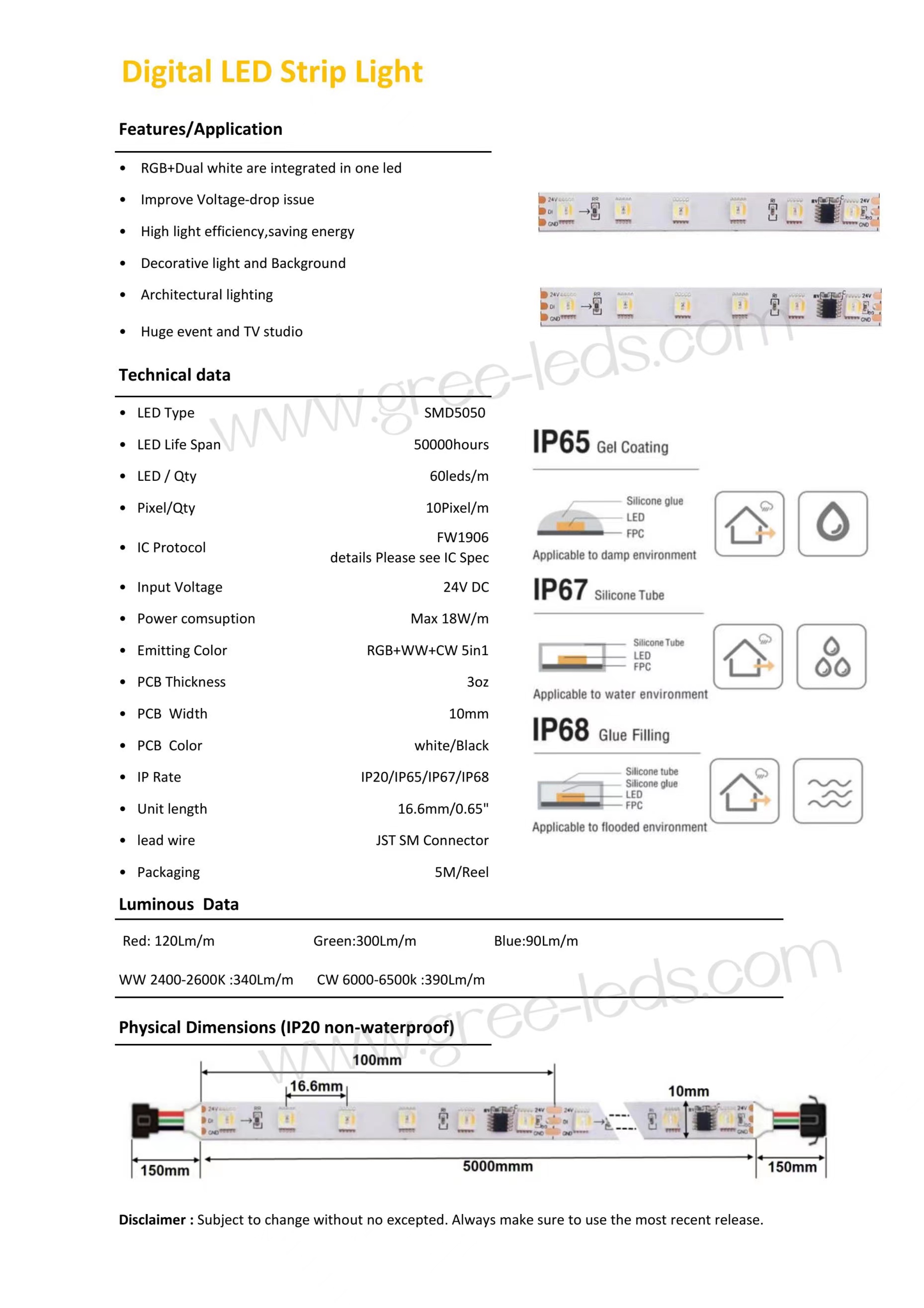

Note: FW1906 IC data format and Timing please download FW1906 IC datasheet. The led strip details Please download datahsheet.
led strip color order W-WW-G-R-B ( IC‘ output B2 is empty)
