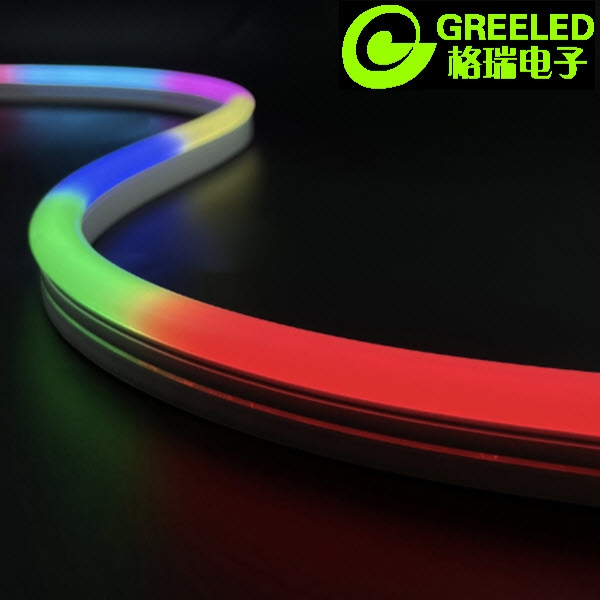

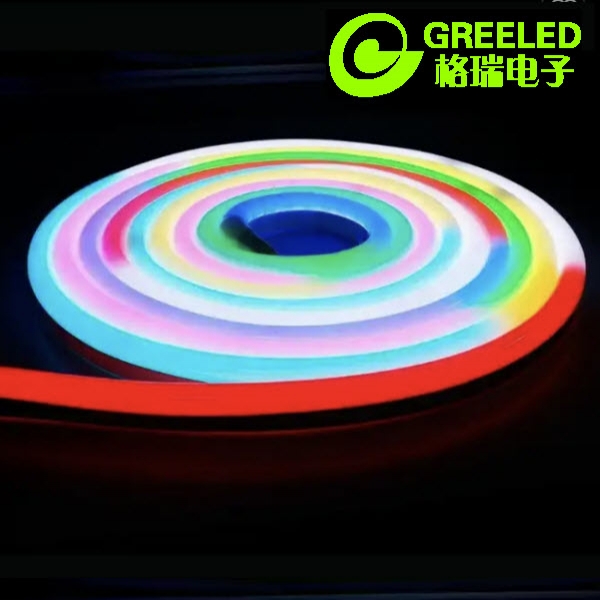

Pixel RGBW Neon Flex

12,24V RGBW Addressable Neon Flex S1023

    Feature&Application
    •  Controllable Via SPI Controller or lighting console(DMX).  white colour Rending index(CRI) 90+
    •  Environmental protection grade silicone material,uniform lighting surface and no shadow
    •  high transparency and high strength, Decorative lighting and Linear lighting
    •  Stage festival event ,Indoor and outdoor lighting

    Optional Model
    M/N:GE60RGBW2904A11SN12                         12V-20Pixel/m-UCS2904-RGBW-CRI90+
    M/N:GE60RGBW2904A11SN24                          24V-10Pixel/m-UCS2904-RGBW-CRI90+

    Technical Data

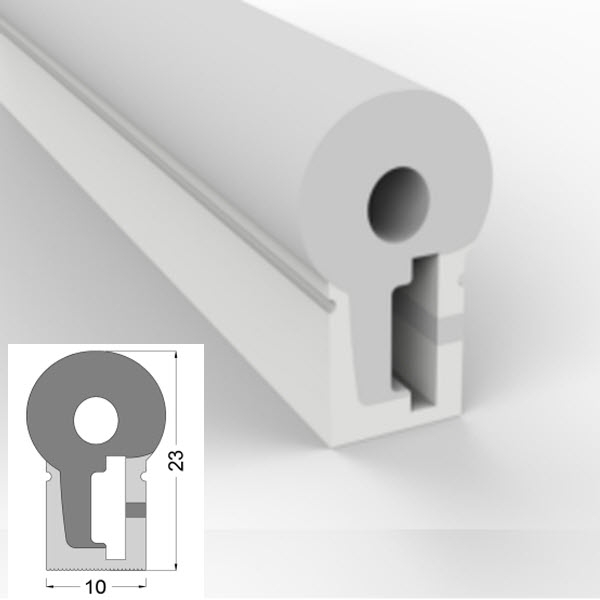

    Cross Section Size: 10*23mm (S1023) Input Voltage:DC12V/24V
    Power consumption: Max 16.5W/M Optional Color: RGB+2700/3000/4000/6000K(CRI90+)
    Control protocol: UCS2904,SM16704,DMX Universe Cutting unit:50mm@12V,100mm@24V
    Pixel QTY:20Pixel/m @12V IP Rating: IP67
    Pixel QTY:10Pixel/m @24V Bend direction: Sideview
    Standard length:5meter Min Bend Diameter:200mm
    Mounting: Aluminum Clips/Aluminum Profile Beam Angle: 270°
    Operating Temp: Min = -20°C , Max = 45°C Warranty:3years
    Optional Connection Way: 3Pin JST SM Connector, 3 core Insualted sheath wire,3Pin waterproof connector
    Optional Connection direction: Side Entry(left or right), Direct Entry
    Luminous Flux: Red:140Lm/m,  Green:280Lm/m ,Blue:100Lm/m
    WW 2700k  300Lm/m ,WW 3000K 320Lm/m,  NW 4000K  360Lm/m,  CW 6000K 360Lm/m

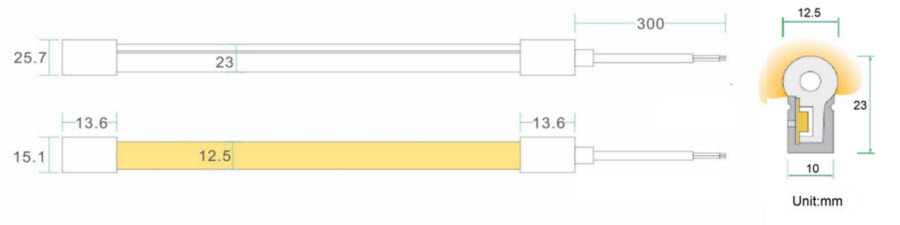

    Dimension

    Mounting way



    File Name : Format: Size: Download:
