Sideview | Mini | Digital Tape

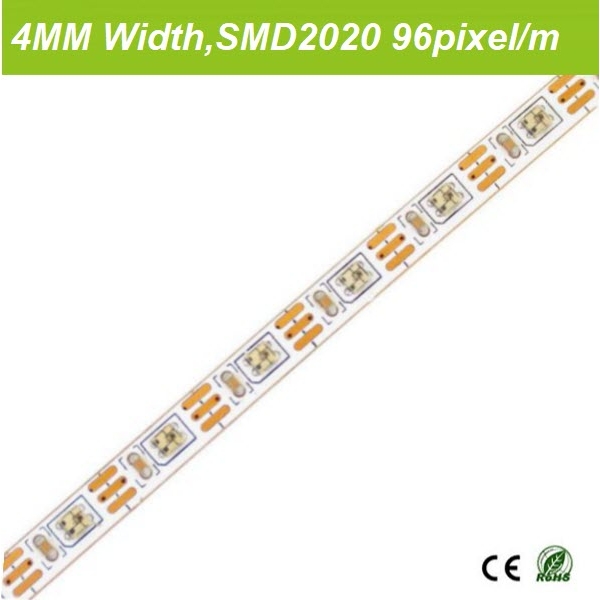

4MM SMD2020 Digital tape

    Features
    1. Input Voltage DC5V, Single signal (data) control.
    2. GE8812 IC embedded in Mini SMD2020 RGB LED.
    3. View angle: 270degree,each led is programmable.
    3. 96leds/m,10.41mm/0.41 intervals cutting point
    4. Compatible with SK6812/WS2812B controller
    5. 5mm width mini White PCB  available.
    6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
    7. 3M adhensive tape stick on the back of non-waterproof version.
    8. Controller System:SD controller , DMX controller , Artnet.
    9. 2M/pc with single end feeding power, 3M/pc with double ends feeding power
    10. This strips are suitable for slim Flex led neon.

    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE96RGB8812A4MM 3000*4*1.5 IP21 DC5V    SMD2020RGB      Low heat LED GE8812
    Built-in
    96 96 R:75lm
      G:150lm   B:60lm
     Mix W:200lm
    270 8.0w
