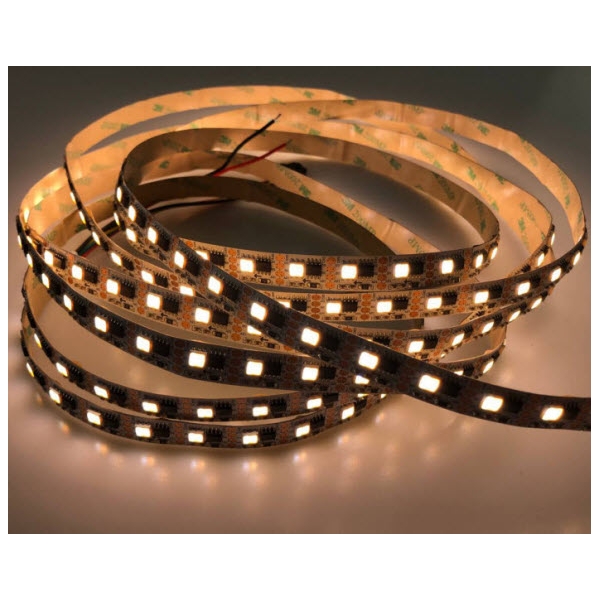

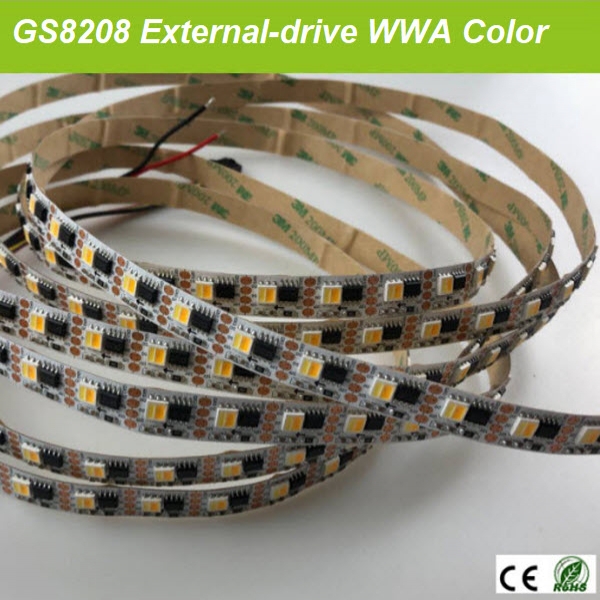

White | WWA Digital strip

12V breakpoint resume GS8208


    1. Input Voltage DC12V, single signal (DI) control.
    2. Signal breakpoint transmission, any fault pixel won‘t affect signal transmission ,unless two consecutive adjacent fault LED.
    3. External GS8208 IC Control. warm white+Cold white+Amber three chips in SMD5050.
    4. 20leds/m,48leds/m,60leds/m available.Each led is programmable.
    5. 50mm/1.97",20.8mm/0.82",16.7mm/0.66" intervals cutting point
    6. White PCB/Black PCB available, IP21/IP65/IP67/IP68 available.
    7. Both ends wired with 150mm/5.9" 20Awg wire and JST 4Pin male/female connector
    8. 3M adhensive tape stick on the back of non-waterproof version.
    9. Controller System:SD controller , DMX controller , Artnet.
    10. Only DI wired to controller‘ data . BI is for the chip‘s breakpoint resume function when we resolder PCB


    Product Model
    M/N Size/mm IP Rate Voltage Led type IC type Leds/m Pixel/m Luminous/m Angle Watt/m
    GE20WWA8208A12
    GE20WWA8208B12
    GE20WWA8208C12
    GE20WWA8208D12
     5000*10*2.5
      5000*10*3.0     5000*12*3.5
     5000*12*4.0
      IP21
        IP65
      IP67
      IP68
    DC12V SMD5050 WWA
    W+WW+Amber
    GS8208
    External
    20 20 W: 130lm WW:120lm A:60lm 120 4.8w
    GE48WWA8208A12
    GE48WWA8208B12
    GE48WWA8208C12
    GE48WWA8208D12
     5000*10*2.5
      5000*10*3.0     5000*12*3.5
     5000*12*4.0
      IP21
         IP65
      IP67
      IP68
    DC12V SMD5050 WWA
    W+WW+Amber
    GS8208
    External
    48 48 W: 312lm WW:288lm A:144lm 120 11.52w
    GE60WWA8208A12
    GE60WWA8208B12
    GE60WWA8208C12
    GE60WWA8208D12
     5000*12*2.5
      5000*12*3.0     5000*14*3.5
     5000*14*4.0
      IP21
         IP65
      IP67
      IP68
    DC12V SMD5050 WWA
    W+WW+Amber
    GS8208
    External
    60 60 W: 390lm WW:360lm A:180lm 120 14.4w
