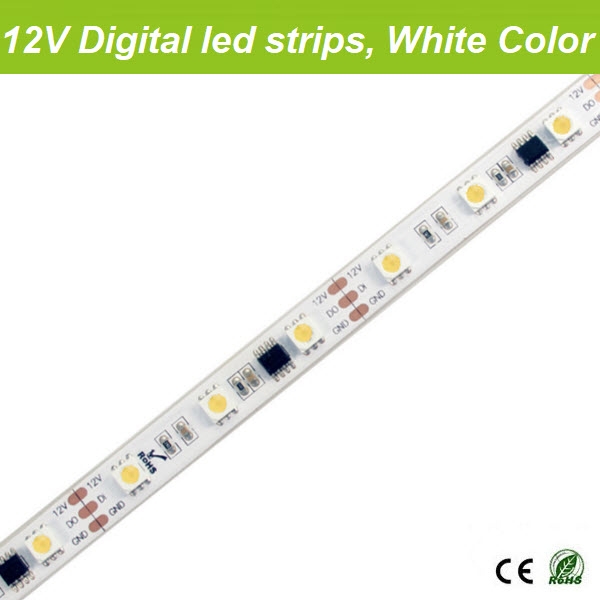

White | WWA Digital strip

High CRI Digital white tapes

    1. Input Voltage DC12V, single signal (data) control.
    2.  3leds=1Pixel, SM16703/WS2811/UCS1903 Protocol
    3. 30leds/m,48leds/m,60leds/m ,72leds/m available,3000K/4000K/6000K CRI90+
    4. 100mm/3.93",62.5mm/2.46",50mm/1.97" 41.6mm/1.64" intervals cutting point
    5. White PCB/Black PCB available. IP21/IP65/IP67/IP68 available.
    6. Both ends wired with 150mm/5.9" 20Awg wire and JST 3Pin male/female connector
    7. 3M adhensive tape stick on the back of non-waterproof version.
    8. Controller System:SD controller , DMX controller , Artnet.

    Model Size/mm IP Rate Voltage IC Protocol Leds/m Pixel/m Lum/m Watt/m CRI Available Color/CCT
    GE30W1903A 5000*10*2.5mm IP21 12V DC UCS1903 30 10 400lum/m Max 7.2w/m 90+ 2700-3000K
    GE48W1903A 5000*10*2.5mm IP21 12V DC UCS1903 48 16 640lum/m Max 11.5w/m 90+ 3000-3500K
    GE60W1903A 5000*10*2.5mm IP21 12V DC UCS1903 60 20 800lum/m Max 14.4w/m 90+ 4000-4500k
    GE72W1903A 5000*10*2.5mm IP21 12V DC UCS1903 72 24 960lum/m Max 17.28w/m 90+ 6000-7000k

    Remark: We can use WS2811/SM16703 IC replace UCS1903 IC,IP65 glue sealing,IP67 Hollow silicon sleeve,IP68 Closed solicon inject glue Available

    File Name : Format: Size: Download:
    Welcome your inquiry, we will reply you within 24 hours.
