APA-GE IC Built-in led

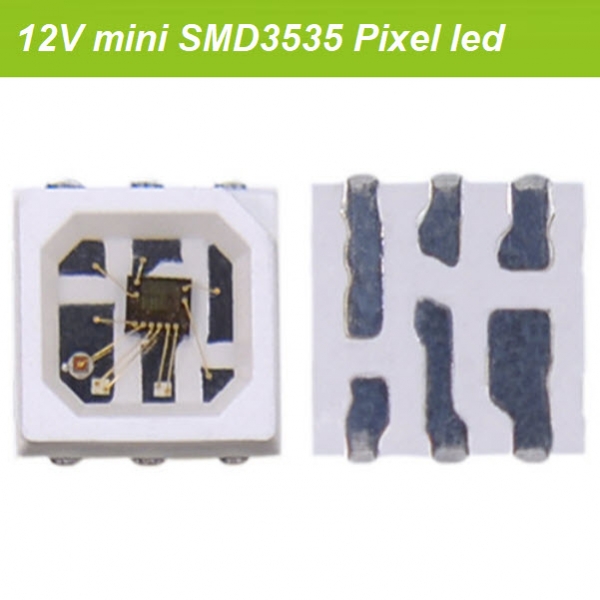

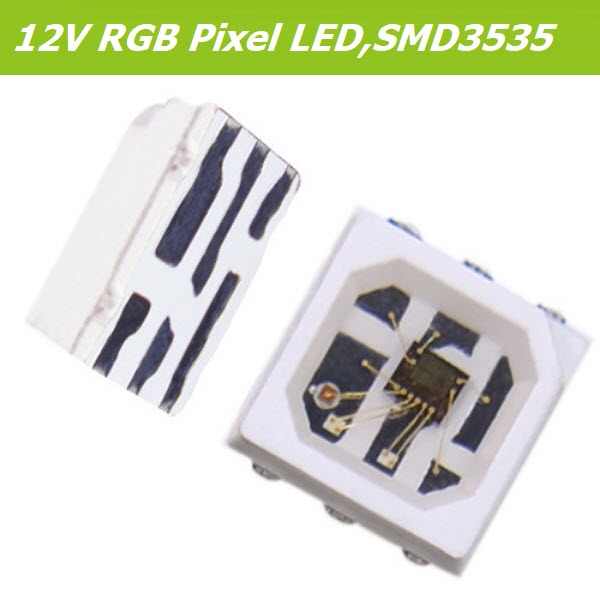

12V Pixel led-SMD3535

    ●The control circuit and RGB chips are integrated in one SMD3535 package  as one pixel.Built in various of function units。
    ●Adopt led chips in series design,Default current 9MA,Improve energy efficiency.
    ●12V single pixel addressable,Improve Voltage-drop Issue.
    ●It have backup data to prevent signal interrupt.(Break-Point resume function)
    ●The PWM Scanning Frequency up to 8khz
    ●Each color 8Bits,256 Gray scale, No light when power on
    ●Data transmission rate up to 1000kbps,Standard high speed mode 800kbps
    ●The pixel number of cascades is not less than 1024 pixels at 30 frame per second.
    ●The led data transmit base on SPI Communication protocol

    M/N Package Volt Power Emitting Color Fpwm Data rate Angle Qty/Reel
    GE8808B-3535 SMD3535-PLCC6 DC12V 0.15w RGB 8khz 800kbps 120° 1.5k

    Details Please download datasheet.
